2 Valve Manifold Pipe to Pipe Straight Type, Pipe to Flange Tee Type, Flange to Flange Type, 2 Valve Manifold Coplanar Manufacturer in Mumbai,India.

Nickel Super Alloys is one of leading Manufacturer & Supplier of 2 Valve Manifold in India, Mumbai. These 2 Valve Manifold designs for low, medium and high-pressure usage. The Needle Valves & Manifolds manufactured by Shikhar Steek are available in a wide range of materials and designs. Based on specific client requirement, we can design different models meeting critical process applications.

These manifolds provide a direct mounting feature with isolation & drain/calibration in a single unit. These type of manifolds can be directly mounted on the static pressure transmitter to eliminate several parts & joints.

2 Valve Manifold Pipe to Pipe Straight Type Supplier, 2 Valve Manifold Pipe to Flange Tee Type Manufacturer, 2 Valve Manifold Flange to Flange Type Exporter, 2 Valve Manifold Coplanar Supplier in India

Key Features:

  • 2 valve manifolds are designed for remote or separate mounting.
  • Connecting from process side 1/2" npt(f) and instrument side 1/2" npt(f) connecting system impulse lines and transmitters, having simple two valves configuration which allows for easy block or isolate, bleed or vent valve callbration of a static pressure transmitter or gauge.

Bonnet Assembly :

  • Bonnet : back seated blow out proof.
  • Spindle : ground and thread rolled. Packing below thread.
  • Spindle Tip : non-rotating tip shut-off type & soft seated.
  • Dust cap : dust cap protects stem threads from external contamination heat code traceability.

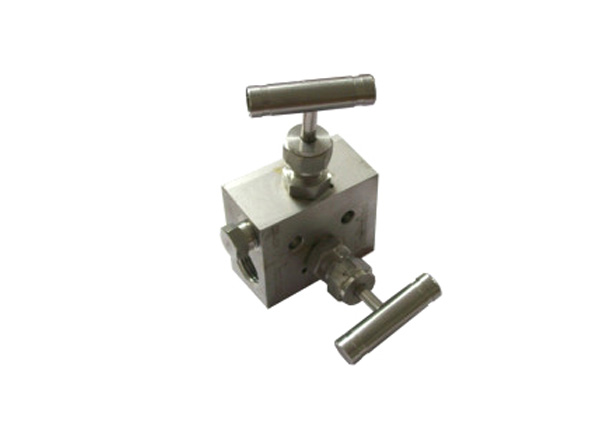

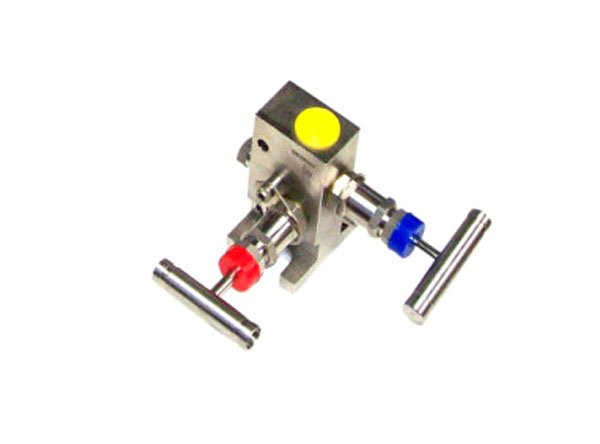

Types of 2 Manifold Valve

Technical Specification

Size 1/4" & 1/2" & 3/4" Custom size available as per requirement
End Connection NPT, BSPT, BSP & Socket Weld.
Working Pressure 6000 psi (413 bar)
Temperature Rating PTFE 450° f(232°c) Grafoil 700° f (371°c")
Stem Packing PTFE, Grafoil.
Orifice ø4.7

Material of Construction

Stainless Steel ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L, 304H, 316H, 316/316L, 321, 330, 347, 309/S, 310/S, 317/L, 333, 410/S, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404
Alloy Steel ASTM SA 182 - E25, E26, E27, E28, E29B, E30B, E39B, E40B, E36B, E36C, E41B, AISI4130, AISI4140, AISI4340, 42CRMO4, 16MNCR5, 20MNCR5, 21CrMoV57, EN353, EN354, F11, F22, F91, F9, P11, P22, P91, P9, P5, P92, EN42J, EN8, EN19
Carbon Steel ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70
Monel Monel 400, Monel K500, Monel R-405
Nickel Alloy Nickel 200, Nickel 201
Inconel Inconel 600, Inconel 601, Inconel 625, Inconel 718
Incoloy Incoloy 800, Inconel 800H, 800HT
Hastalloy Hastalloy B2, Hastalloy B3, Hastalloy C22, Hastalloy C276, Hastalloy X
Titanium Gr1, Gr2, Gr3, Gr5, Gr7, Gr11
Duplex Steel ASTM / ASME A/SA 182 UNS F44, F45, F51, F53, F55, F60, F61
