Positionable Male Elbow
Stainless Steel Positionable Male Elbow Tube Fittings, Alloy Steel Positionable Male Elbow Compression Tube Fittings, Carbon Steel Positionable Male Elbow Instrumentation Pipe Fittings, Nickel Alloy Positionable Male Elbow Instrumentation Pipe Fittings Manufacturer in Mumbai,India.
Nickel Super Alloys is one of leading supplier and distributor of Positionable Male Elbow in India. The industry uses excellent quality raw material that is procured from the vendors across the market. The industry offers good end finishing, accurate dimensions, timely delivery, and great performance. In addition, they keep on upgrading their products as per the market trend. This Positionable Male Elbow Tube Fittings offers a two ferrule design and comes in a wide range of sizes and configurations. They are specially designed as a leak-free connection for the most demanding process and instrumentation applications. Available in stainless steel, brass, and a variety of alloys, these tube fittings seal equally well on both thin and heavy wall metal tubing.
Hastelloy Positionable Male Elbow, Monel Positionable Male Elbow Compression Tube Fittings, Aluminum Positionable Male Elbow Instrumentation Pipe Fittings, Inconel Positionable Male Elbow Supplier in India

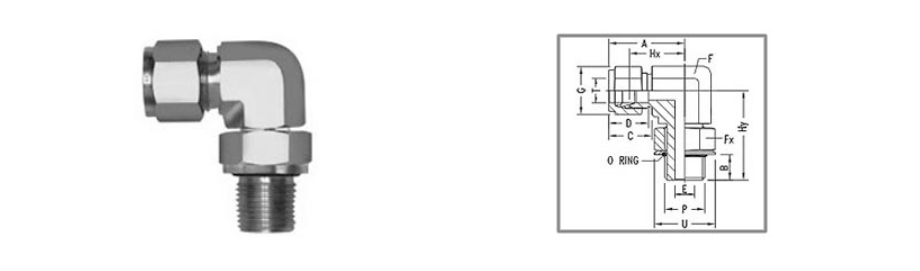

Positionable Male Elbow INCH OD TUBE X MALE ISO PARALE THREADS
| T Tube OD | p ISO Male | Ax | B | C | D | E min. | F | Fx A/F | G A/F | Hx A/F | Hy | U |
| 1/4 1/4 |
1/8 1/4 |
27.0 29.0 |
8.2 9.2 |
17.8 17.8 |
15.3 15.3 |
4.0 4.8 |
14 16 |
14 19 |
14 14 |
19.6 21.6 |
26.4 32.3 |
17.3 22.9 |
| 3/8 3/8 |
1/4 3/8 |
30.5 33.0 |
9.2 9.2 | 19.3 19.3 |
16.8 16.8 |
5.8 7.1 |
16 22 |
19 22 |
17 17 |
23.2 25.9 |
32.3 37.0 | 22.9 26.4 |
| 1/2 1/2 1/2 |
1/4 3/8 1/2 |
36.0 36.0 38.1 |
9.2 9.4 13.0 |
21.8 21.8 21.8 |
22.9 22.9 24.4 |
5.8 7.8 10.4 |
22 22 24 |
19 22 27 |
22 22 22 |
25.9 25.9 27.9 |
35.0 37.0 43.4 |
22.9 26.4 32.0 |
| 5/8 | 1/2 | 38.1 | 13.0 | 21.8 | 24.4 | 10.4 | 24 | 27 | 25 | 27.9 | 43.4 | 32.0 |
| 3/4 3/4 | 1/2 3/4 |
39.9 39.9 | 13.0 13.0 | 21.8 21.8 | 24.4 24.4 | 10.4 15.8 | 27 27 |
27 35 |
28.5 28.5 | 29.7 29.7 | 45.2 48.8 | 32.0 41.2 |
| 1 1 |
3/4 1 |
49.0 49.0 | 13.0 14.0 | 26.4 26.4 | 31.2 31.2 | 15.8 19.8 | 35 35 |
35 41 |
38 38 |
36.8 36.8 | 53.3 53.6 | 41.2 48.5 |
Positionable Male Elbow METRIC OD TUBES X MALE ISO PARALLEL THREADS
| T Tube OD | p ISO Male | Ax | B | C | D | E min. | F | Fx A/F | G A/F | Hx A/F | Hy | U |
| 6 6 |
1/8 1/4 |
27.0 29.0 |
8.1 9.1 |
17.7 17.7 |
15.3 15.3 |
4.0 4.8 |
14 16 |
14 19 |
14 14 |
19.6 21.6 |
26.4 32.3 |
17.3 22.9 |
| 8 8 |
1/8 1/4 |
28.8 29.9 |
8.1 9.1 |
18.6 18.6 |
16.2 16.2 |
4.0 5.9 |
14 16 |
14 19 |
16 16 |
21.3 22.4 |
27.4 32.2 |
17.3 22.9 |
| 10 10 |
1/4 3/8 |
33.5 33.5 |
9.1 9.4 |
19.5 19.5 |
17.2 17.2 |
5.9 7.9 |
19 19 |
19 22 |
19 19 |
25.9 25.9 |
35.0 37.1 |
22.9 26.4 |
| 12 12 12 |
3/8 1/2 3/4 |
36.0 38.0 39.8 |
9.4 13.0 13.0 |
22.0 22.0 22.0 | 22.8 22.8 22.8 | 7.9 9.5 9.5 | 22 24 27 | 22 27 35 | 22 22 22 |
25.9 27.9 29.7 | 37.1 43.4 48.8 | 26.4 32.0 41.1 |
| 16 | 1/2 | 38.1 | 13.0 | 22.0 | 24.4 | 11.9 | 27 | 27 | 28.5 | 29.7 | 45.2 | 32.0 |
| 22 | 3/4 | 44.6 | 13.0 | 22.0 | 26.0 | 15.8 | 27 | 35 | 28.5 | 34.5 | 48.8 | 41.2 |
| 25 25 |
3/4 1 |
49.0 49.0 | 13.0 14.0 | 26.5 26.5 | 31.3 31.3 | 15.8 21.8 | 35 35 | 35 41 | 38 38 |
36.8 36.8 | 53.3 53.6 | 41.2 48.5 |
Material of Construction
| Stainless Steel | ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L, 304H, 316H, 316/316L, 321, 330, 347, 309/S, 310/S, 317/L, 333, 410/S, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404 |
| Alloy Steel | ASTM SA 182 - E25, E26, E27, E28, E29B, E30B, E39B, E40B, E36B, E36C, E41B, AISI4130, AISI4140, AISI4340, 42CRMO4, 16MNCR5, 20MNCR5, 21CrMoV57, EN353, EN354, F11, F22, F91, F9, P11, P22, P91, P9, P5, P92, EN42J, EN8, EN19 |
| Carbon Steel | ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70 |
| Monel | Monel 400, Monel K500, Monel R-405 |
| Nickel Alloy | Nickel 200, Nickel 201 |
| Inconel | Inconel 600, Inconel 601, Inconel 625, Inconel 718 |
| Incoloy | Incoloy 800, Inconel 800H, 800HT |
| Hastalloy | Hastalloy B2, Hastalloy B3, Hastalloy C22, Hastalloy C276, Hastalloy X |
| Titanium | Gr1, Gr2, Gr3, Gr5, Gr7, Gr11 |
| Duplex Steel | ASTM / ASME A/SA 182 UNS F44, F45, F51, F53, F55, F60, F61 |
