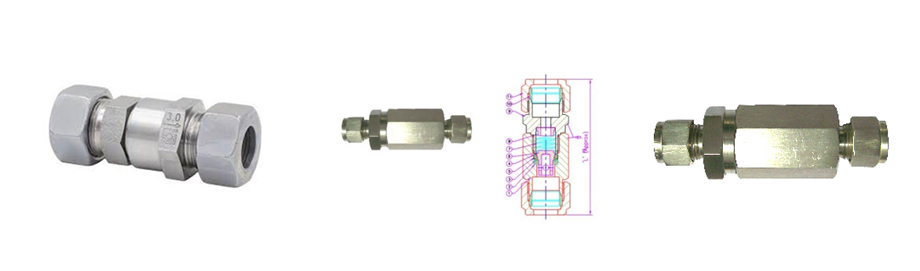

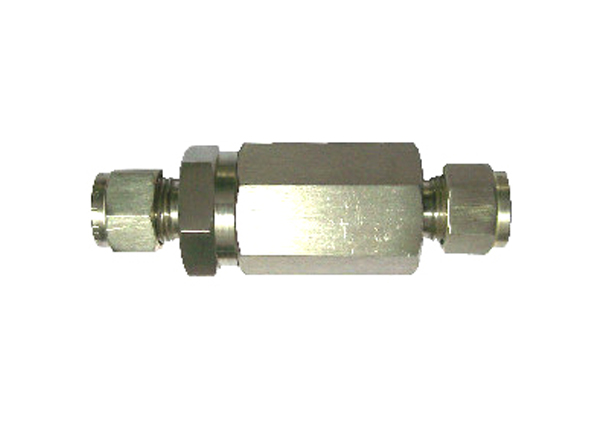

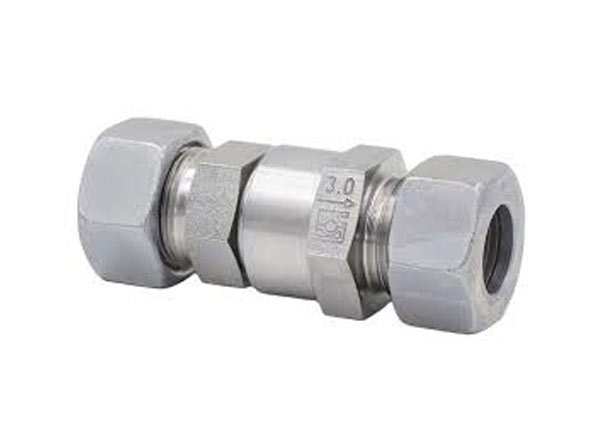

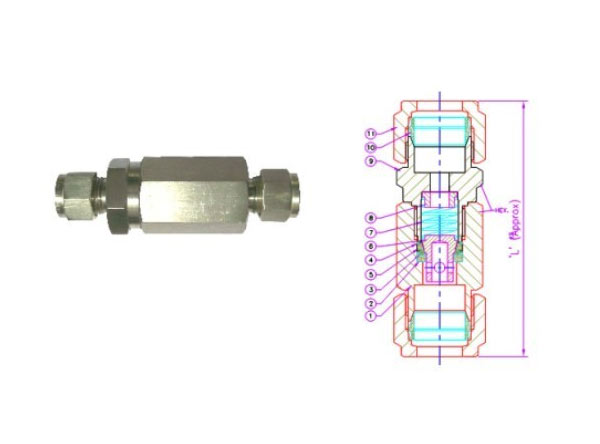

Check Valve
Check Valve Female, Check Valve Tube X Tube Fractional, Check Valve Tube X Tube Metric, Check Valve Male X Male Manufacturer in Mumbai,India.
Nickel Super Alloys is one of leading Supplier & Exporter of Check Valve in India, Mumbai. Check valves are mechanical valves that permit gases and liquids to flow in only one direction, preventing process flow from reversing. They are classified as one-way directional valves. Fluid flow in the desired direction opens the valve, while backflow forces the valve closed. The mechanics of check valve operation are not complicated. Check valves are used to stop backflow and protect rotating equipment or other mechanical devices from the sudden backflow surges that may occur.
Our Full Port, Female NPT (FNPT) Check Valves provide more flow and lower pressure drops than conventional check valves. Our elastomer hinge check valve design takes performance to an entirely new level by eliminating the restrictive valve seat and substantially increasing the valve’s open area and flow coefficient (Cv).
Stainless Steel Check Valve Female, Alloy Steel Check Valve Tube X Tube Fractional, Carbon Steel Check Valve Tube X Tube Metric, Inconel & Monel Check Valve Male X Male Supplier in India
Key Features:
- Check valves are used for controllng flow in one direction only. Check valves should never be used as code safety relief devices.
- Lowest Pressure Drop.
- Easy to Install.
- Alleviates Water Hammer.
Note :
- End connections available in NPT; BSPT ; Tube size; BSPP
- 100% valve are factory tested prios to despatch
Types of Check Valve
Check Valve Female
Check Valve Tube X Tube Fractional
Check Valve Tube X Tube Metric
Technical Specification
SIZE |
A |
B |
CSQ |
WEIGHT (kg) |
1/4" |
93 |
55 |
25 |
0.36 |
3/8" |
93 |
55 |
25 |
0.37 |
1/2" |
95 |
66 |
28 |
0.46 |
3/4" |
109 |
70 |
38 |
0.8 |
1" |
117 |
80 |
45 |
1.3 |
Material of Construction
| Stainless Steel | ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L, 304H, 316H, 316/316L, 321, 330, 347, 309/S, 310/S, 317/L, 333, 410/S, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404 |
| Alloy Steel | ASTM SA 182 - E25, E26, E27, E28, E29B, E30B, E39B, E40B, E36B, E36C, E41B, AISI4130, AISI4140, AISI4340, 42CRMO4, 16MNCR5, 20MNCR5, 21CrMoV57, EN353, EN354, F11, F22, F91, F9, P11, P22, P91, P9, P5, P92, EN42J, EN8, EN19 |
| Carbon Steel | ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70 |
| Monel | Monel 400, Monel K500, Monel R-405 |
| Nickel Alloy | Nickel 200, Nickel 201 |
| Inconel | Inconel 600, Inconel 601, Inconel 625, Inconel 718 |
| Incoloy | Incoloy 800, Inconel 800H, 800HT |
| Hastalloy | Hastalloy B2, Hastalloy B3, Hastalloy C22, Hastalloy C276, Hastalloy X |
| Titanium | Gr1, Gr2, Gr3, Gr5, Gr7, Gr11 |
| Duplex Steel | ASTM / ASME A/SA 182 UNS F44, F45, F51, F53, F55, F60, F61 |
