Single Block Valve
Stainless Steel Single Block Valve-MB1 Series, Alloy Steel Single Block and Bleed Valves-BB4 Series Manufacturer in Mumbai,India.
Nickel Super Alloys is one of leading Supplier & Exporter of Single Block Valve in India, Mumbai. Single block and bleed valves are used to achieve positive isolation when performing maintenance activities in a live process plant. Typically one block valve and a bleed valve are manufactured as a single assembly and this block and bleed valve manifold can be readily installed for isolation purpose. Single block and bleed valves are usually used for non-critical process service, such as low pressure system or non toxic, non hydrocarbon, non-hazardous process fluids. For critical service, double block and bleed valve assemblies must be used.
Single block and bleed valves are usually used for non-critical process service, such as low pressure system or non toxic, non hydrocarbon, non-hazardous process fluids. For critical service, double block and bleed valve assemblies must be used.
Inconel & Monel Single Block Valve-MB1 Series, Duplex Steel Single Block and Bleed Valves-BB4 Series Supplier in India
Key Features:
- It is a combination of needle & manifold valves thus redusing the number of joints
- Spindle : ground and thread rolled.stem tip 17-4ph for long life
- Dust cap protects stem threads from external contamination leak tight seal with low operating torque heat code traceability ball hard chrome plated for smooth opertions
Testing :
- Hydrostatic shell test is performed at 1.5 times the working pressure
- Standard Test : each valves is tested with nitrogen at 1,000 psi for seat & packing leakage, with a max. Allowable leak rate of 0 .1 std. Cm3 / min.
- Optional test are available upon request

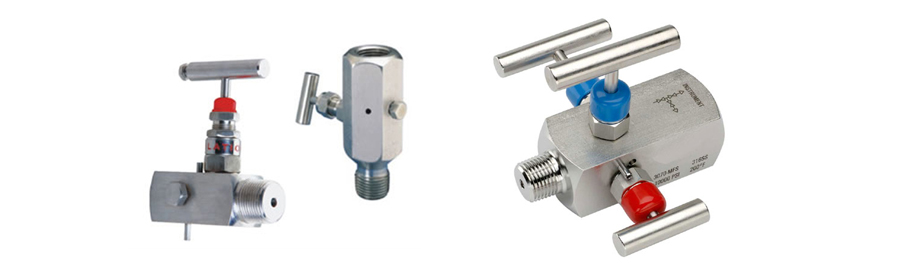

Types of Single Block Valve

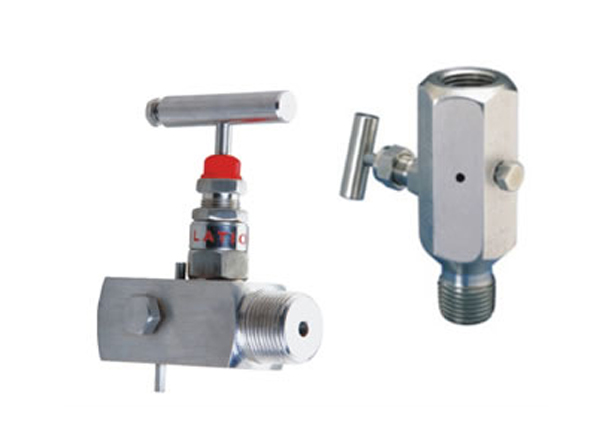

Single Block Valve-MB1 Series

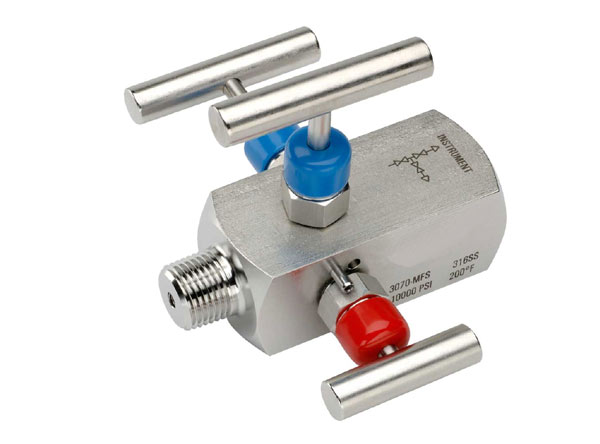

Single Block and Bleed Valves-BB4 Series
Specification
SIZE |
A |
B |
CSQ |
WEIGHT (kg) |
1/4" |
93 |
55 |
25 |
0.36 |
3/8" |
93 |
55 |
25 |
0.37 |
1/2" |
95 |
66 |
28 |
0.46 |
3/4" |
109 |
70 |
38 |
0.8 |
1" |
117 |
80 |
45 |
1.3 |
Material of Construction
| Stainless Steel | ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L, 304H, 316H, 316/316L, 321, 330, 347, 309/S, 310/S, 317/L, 333, 410/S, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404 |
| Alloy Steel | ASTM SA 182 - E25, E26, E27, E28, E29B, E30B, E39B, E40B, E36B, E36C, E41B, AISI4130, AISI4140, AISI4340, 42CRMO4, 16MNCR5, 20MNCR5, 21CrMoV57, EN353, EN354, F11, F22, F91, F9, P11, P22, P91, P9, P5, P92, EN42J, EN8, EN19 |
| Carbon Steel | ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70 |
| Monel | Monel 400, Monel K500, Monel R-405 |
| Nickel Alloy | Nickel 200, Nickel 201 |
| Inconel | Inconel 600, Inconel 601, Inconel 625, Inconel 718 |
| Incoloy | Incoloy 800, Inconel 800H, 800HT |
| Hastalloy | Hastalloy B2, Hastalloy B3, Hastalloy C22, Hastalloy C276, Hastalloy X |
| Titanium | Gr1, Gr2, Gr3, Gr5, Gr7, Gr11 |
| Duplex Steel | ASTM / ASME A/SA 182 UNS F44, F45, F51, F53, F55, F60, F61 |
