Flange Bleed Valve
Flange Block and Bleed Valves-BB1 Serise, Monoflange Single Block and Bleed Valves-BB2 Series, Flange Double Block and Bleed Valves-DBB1 Series Manufacturer in Mumbai,India.
Nickel Super Alloys is one of leading Supplier & Exporter of Flange Bleed Valve in India, Mumbai. There is a lot of misunderstanding surrounding the term double block-and-bleed (DBB) as used to describe valve functionality. It seems almost every valve buyer and manufacturer has a different idea of what the term means for valve selection, which can result in the wrong specifications or valve type. Some of this confusion in the oil and gas industry stems from the fact that there are two credible sources that define the term differently.
There are two entities in the United States that define DBB – the American Petroleum Institute (API) and the Occupational Safety and Health Administration (OSHA). API is a trade organization that acts as an advocate as well as researcher for America’s oil and natural gas industry, outlining many industry guidelines for safe operation.
Stainless Steel Flange Block and Bleed Valves-BB1 Serise, Alloy Steel Monoflange Single Block and Bleed Valves-BB2 Series, Flange Double Block and Bleed Valves-DBB1 Series Supplier in India
Key Features:
- It is a combination of needle & manifold valves thus redusing the number of joints
- Spindle : ground and thread rolled.stem tip 17-4ph for long life
- Dust cap protects stem threads from external contamination leak tight seal with low operating torque heat code traceability ball hard chrome plated for smooth opertions
Testing :
- Hydrostatic shell test is performed at 1.5 times the working pressure
- Standard Test : each valves is tested with nitrogen at 1,000 psi for seat & packing leakage, with a max. Allowable leak rate of 0 .1 std. Cm3 / min.
- Optional test are available upon request

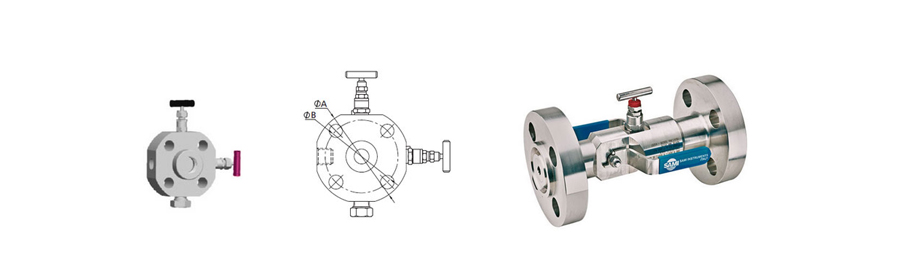

Types of Flange Bleed Valve
Flange Block and Bleed Valves-BB1 Serise
Monoflange Single Block and Bleed Valves-BB2 Series

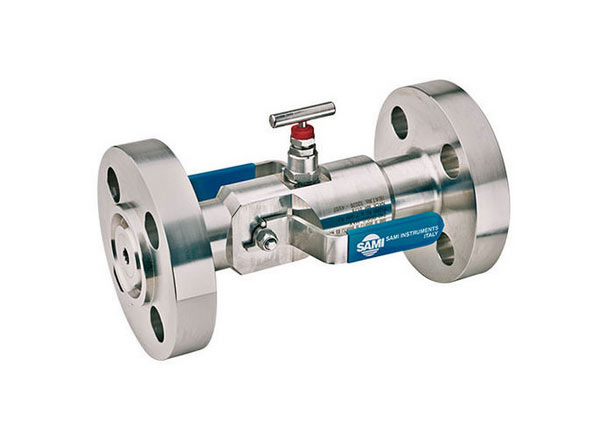

Flange Double Block and Bleed Valves-DBB1 Series

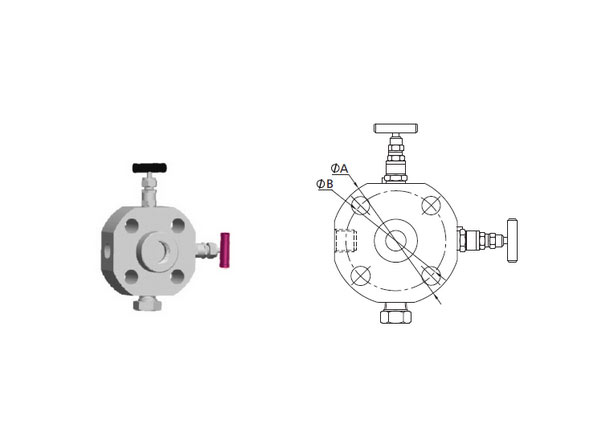

Specification
SIZE |
A |
B |
CSQ |
WEIGHT (kg) |
1/4" |
93 |
55 |
25 |
0.36 |
3/8" |
93 |
55 |
25 |
0.37 |
1/2" |
95 |
66 |
28 |
0.46 |
3/4" |
109 |
70 |
38 |
0.8 |
1" |
117 |
80 |
45 |
1.3 |
Material of Construction
Stainless Steel | ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L, 304H, 316H, 316/316L, 321, 330, 347, 309/S, 310/S, 317/L, 333, 410/S, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404 |
Alloy Steel | ASTM SA 182 - E25, E26, E27, E28, E29B, E30B, E39B, E40B, E36B, E36C, E41B, AISI4130, AISI4140, AISI4340, 42CRMO4, 16MNCR5, 20MNCR5, 21CrMoV57, EN353, EN354, F11, F22, F91, F9, P11, P22, P91, P9, P5, P92, EN42J, EN8, EN19 |
Carbon Steel | ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70 |
Monel | Monel 400, Monel K500, Monel R-405 |
Nickel Alloy | Nickel 200, Nickel 201 |
Inconel | Inconel 600, Inconel 601, Inconel 625, Inconel 718 |
Incoloy | Incoloy 800, Inconel 800H, 800HT |
Hastalloy | Hastalloy B2, Hastalloy B3, Hastalloy C22, Hastalloy C276, Hastalloy X |
Titanium | Gr1, Gr2, Gr3, Gr5, Gr7, Gr11 |
Duplex Steel | ASTM / ASME A/SA 182 UNS F44, F45, F51, F53, F55, F60, F61 |
