90 Degree Threaded Elbow
ASTM A182 Stainless Steel 300 Series 90 Deg Theraded Elbow, SS 90 Deg Theraded Elbow, A234 AISI 4130 3000LB 90 Deg Theraded Elbow, Alloy Steel 90 Deg Theraded Elbow, Duplex Steel 90 Deg Theraded Elbow, Nickel Alloy 90 Deg Theraded Elbow Manufacturer in Mumbai, India.
Shikhar Steel is a prominent leader in supplying and exporting of 90 Degree Threaded Elbow in India. Our offered Threaded 90 Degree Elbows makes a 90° change of direction in the run of the pipe. Threaded Elbow Fittings are mostly used for small pipe diameters generally for piping whose nominal diameter is NPS 2 or smaller. This fitting makes a 90° change of direction in the run of the pipe. It adds pressure losses to the system due to friction, impact and re-acceleration. The Stainless Steel Threaded 90° Elbow Fittings provides an eternal welded connection for essential applications such as water supply pipelines and other fluid transfer systems.
Our offered range of ASME B16.11 / BS3799 Threaded 90 Deg Elbow is known for their low maintenance, weather resistance, high strength, easy to install and strong construction and are available in various diameters and at market leading price.
BS3799 90 Deg Theraded Elbow, Inconel 90 Deg Theraded Elbow, Monel 90 Deg Theraded Elbow, Hastelloy 90 Deg Theraded Elbow, Alloy 20 90 Deg Theraded Elbow, Copper Nickel 90 Deg Theraded Elbow, Titanium 90 Deg Theraded Elbow, 6000LB 90 Deg Threaded Elbow Suppliers in India.
Key Charactristic:
- Corrosion resistance
- Resistance to oxidation and sulfidation
- Cryogenic strength
- Resistance to abrasion and erosion
- Surface finish
- Magnetic properties
- Ductility
- Elevated temperature strength
- Stability of properties in service
- Suitability for intended fabrication techniques
Threaded 90 Degree Elbow Specifications
| Fittings | Threaded 90 Deg Elbow |
| Standard | ASME A182, ASME B16.9, ASME B16.11, MSS SP-43, MSS SP-95, BS3799 |
| Dimension | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size | 1/8″~4″ (DN6~DN100) |
| Class | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Form | Forged Elbow, Screwed 90 Deg Elbow. |
Threaded 90 Degree Elbow Material & Grades
| Stainless Steel Threaded 90 Deg Elbow |
ASTM A182 F304, F304L, F306, F316L, F304H, F309S, F309H, F310S, F310H, F316TI, F316H, F316LN, F317, F317L, F321, F321H, F11, F22, F91, F347, F347H, F904L, ASTM A312/A403 TP304, TP304L, TP316, TP316L |
| Alloy Steel Threaded 90 Deg Elbow |
ASTM / ASME A 182, ASTM / ASME A 335, ASTM / ASME A 234 GR P 1, P 5, P 9, P 11, P 12, P 22, P 23, P 91, ASTM / ASME A 691 GR 1 CR, 1 1/4 CR, 2 1/4 CR, 5 CR, 9CR, 91 |
| Carbon Steel Threaded 90 Deg Elbow |
ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2, ASTM / ASME A 53 GR. A & B, ASTM A 106 GR. A, B & C. API 5L GR. B, API 5L X 42, X 46, X 52, X 60, X 65 & X 70. ASTM / ASME A 691 GR A, B & C |
| Copper Alloy Threaded 90 Deg Elbow |
ASTM / ASME SB 111 UNS NO. C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 C 71500, ASTM / ASME SB 466 UNS NO. C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30) |
| Nickel Alloy Threaded 90 Deg Elbow |
ASTM / ASME SB 336, ASTM / ASME SB 564 / 160 / 163 / 472, UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201 ) , UNS 4400 (MONEL 400 ) , UNS 8020 ( ALLOY 20 / 20 CB 3 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) , UNS 10276 (HASTELLOY C 276) |
| Duplex Stainless Steel Threaded 90 Deg Elbow |
ASTM / ASME A/SA 182 UNS F 44, F 45, F51, F 53, F 55, F 60, F 61. |

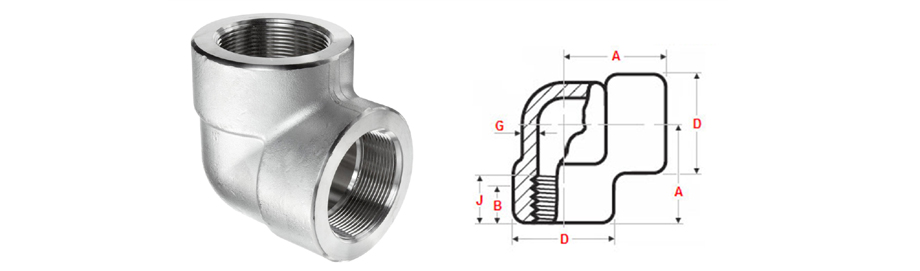

Dimensions of Threaded Elbow 90° - NPS 1/2 to 4 - 2000 LBS - ASME B16.11
| NPS | Minimum Length of Thread |
Outside Diameter of Band |
Minimum Wall Thickness |
Center to End | ||
| B | J | D | G | 90° A | 45° C | |
| 1/2 | 10.9 | 13.6 | 33 | 3.18 | 28 | 22 |
| 3/4 | 12.7 | 13.9 | 38 | 3.18 | 33 | 25 |
| 1 | 14.7 | 17.3 | 46 | 3.68 | 38 | 28 |
| 1¼ | 17 | 18 | 56 | 3.89 | 44 | 33 |
| 1½ | 17.8 | 18.4 | 62 | 4.01 | 51 | 35 |
| 2 | 19 | 19.2 | 75 | 4.27 | 60 | 43 |
| 2½ | 23.6 | 28.9 | 92 | 5.61 | 76 | 52 |
| 3 | 25.9 | 30.5 | 109 | 5.99 | 86 | 64 |
| 4 | 27.7 | 33 | 146 | 6.55 | 106 | 79 |
Dimensions of Threaded Elbow 90° - NPS 1/2 to 4 - 3000 LBS- ASME B16.11
| NPS | Minimum Length of Thread |
Outside Diameter of Band |
Minimum Wall Thickness |
Center to End | ||
| B | J | D | G | 90° A | 45 C | |
| 1/2 | 10.9 | 13.6 | 38 | 4.09 | 33 | 25 |
| 3/4 | 12.7 | 13.9 | 46 | 4.32 | 38 | 28 |
| 1 | 14.7 | 17.3 | 56 | 4.98 | 44 | 33 |
| 1¼ | 17 | 18 | 62 | 5.28 | 51 | 35 |
| 1½ | 17.8 | 18.4 | 75 | 5.56 | 60 | 43 |
| 2 | 19 | 19.2 | 84 | 7.14 | 64 | 44 |
| 2½ | 23.6 | 28.9 | 102 | 7.65 | 83 | 52 |
| 3 | 25.9 | 30.5 | 121 | 8.84 | 95 | 64 |
| 4 | 27.7 | 33 | 152 | 11.18 | 114 | 79 |
Dmensions of Threaded Elbow 90° - NPS 1/2 to 4 - 6000 LBS - ASME B16.11
| NPS | Minimum Length of Thread |
Outside Diameter of Band |
Minimum Wall Thickness |
Center to End | ||
| B | J | D | G | 90° A | 45° C | |
| 1/2 | 10.9 | 13.6 | 46 | 8.15 | 38 | 28 |
| 3/4 | 12.7 | 13.9 | 56 | 8.53 | 44 | 33 |
| 1 | 14.7 | 17.3 | 62 | 9.93 | 51 | 35 |
| 1¼ | 17 | 18 | 75 | 10.59 | 60 | 43 |
| 1½ | 17.8 | 18.4 | 84 | 11.07 | 64 | 44 |
| 2 | 19 | 19.2 | 102 | 12.09 | 83 | 52 |
| 2½ | 23.6 | 28.9 | 121 | 15.29 | 95 | 64 |
| 3 | 25.9 | 30.5 | 146 | 16.64 | 106 | 79 |
| 4 | 27.7 | 33 | 152 | 18.67 | 114 | 79 |
