Threaded Full Coupling
ASTM A182 Stainless Steel 300 Series Threaded Full Coupling, SS Threaded Full Coupling, A234 AISI 4130 3000LB Threaded Full Coupling, Alloy Steel Threaded Full Coupling, Duplex Steel Threaded Full Coupling, Nickel Alloy Threaded Full Coupling Manufacturer in Mumbai, India.
Shikhar Steel is a prominent leader in supplying and exporting Threaded Full Coupling in India. Our offered Threaded Reducing Coupling help to withstand multiple cycles of tightening that lead to loosening of the threads during the drilling process.Threaded Coupling may be welded to the pipe or can be screwed to the pipe as per the requirements and manufactured as per with national and international quality standards. Stainless Steel Threaded / Screwed Full Couplings are fittings that join one pipe to another pipe or to a nipple, etc. It is one of the important fittings of the piping system. Welding this fitting to a pipe makes it leak proof.
Our offered large gamut of Threaded Full Coupling Fittings find frequent applications pipeline networks, A welded system utilises a minimum of space, Electronic industrial pipeline networks, Air conditioning facility pipeline etc.
BS3799 Threaded Full Coupling, Inconel Threaded Full Coupling, Monel Threaded Full Coupling, Hastelloy Threaded Full Coupling, Alloy 20 Threaded Full Coupling, Copper Nickel Threaded Full Coupling, Titanium Threaded Full Coupling, 6000LB Threaded Full Coupling Suppliers in India.
Key Charactristic:
- Corrosion resistance
- Resistance to oxidation and sulfidation
- Cryogenic strength
- Resistance to abrasion and erosion
- Surface finish
- Magnetic properties
- Ductility
- Elevated temperature strength
- Stability of properties in service
- Suitability for intended fabrication techniques
Threaded Full Coupling Specifications
| Fittings | Threaded Full Coupling |
| Standard | ASME A182, ASME B16.9, ASME B16.11, MSS SP-43, MSS SP-95, BS3799 |
| Dimension | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size | 1/8" NB~4" NB |
| Class | 3000 LBS, 6000 LBS, 4500 LBS |
| Form | Coupling, Full Coupling, Reducing Full Coupling. |
Threaded Full Coupling Material & Grades
| Stainless Steel Threaded Full Coupling |
ASTM A182 F304, F304L, F306, F316L, F304H, F309S, F309H, F310S, F310H, F316TI, F316H, F316LN, F317, F317L, F321, F321H, F11, F22, F91, F347, F347H, F904L, ASTM A312/A403 TP304, TP304L, TP316, TP316L |
| Alloy Steel Threaded Full Coupling |
ASTM / ASME A 182, ASTM / ASME A 335, ASTM / ASME A 234 GR P 1, P 5, P 9, P 11, P 12, P 22, P 23, P 91, ASTM / ASME A 691 GR 1 CR, 1 1/4 CR, 2 1/4 CR, 5 CR, 9CR, 91 |
| Carbon Steel Threaded Full Coupling |
ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2, ASTM / ASME A 53 GR. A & B, ASTM A 106 GR. A, B & C. API 5L GR. B, API 5L X 42, X 46, X 52, X 60, X 65 & X 70. ASTM / ASME A 691 GR A, B & C |
| Copper Alloy Threaded Full Coupling |
ASTM / ASME SB 111 UNS NO. C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 C 71500, ASTM / ASME SB 466 UNS NO. C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30) |
| Nickel Alloy Threaded Full Coupling |
ASTM / ASME SB 336, ASTM / ASME SB 564 / 160 / 163 / 472, UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201 ) , UNS 4400 (MONEL 400 ) , UNS 8020 ( ALLOY 20 / 20 CB 3 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) , UNS 10276 (HASTELLOY C 276) |
| Duplex Stainless Steel Threaded Full Coupling |
ASTM / ASME A/SA 182 UNS F 44, F 45, F51, F 53, F 55, F 60, F 61. |

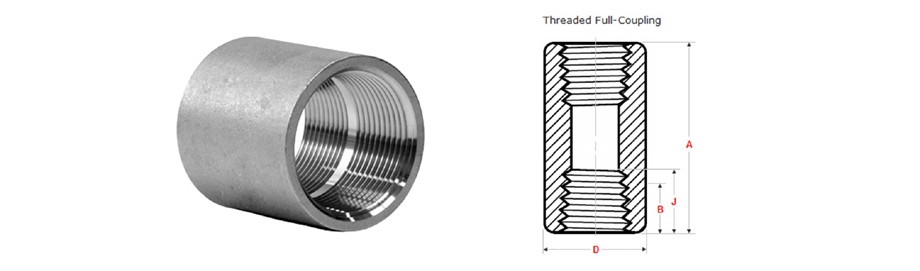

Dimensions of Threaded Full Coupling - NPS 1/2 to 4 - 3000 LBS- ASME B16.11
| NPS | End to End | Outside Diameter | Minimum Length of Thread | |
|---|---|---|---|---|
| A | D | B | J | |
| 1/2 | 48 | 28 | 10.9 | 13.6 |
| 3/4 | 51 | 35 | 12.7 | 13.9 |
| 1 | 60 | 44 | 14.7 | 17.3 |
| 1¼ | 67 | 57 | 17 | 18 |
| 1½ | 79 | 64 | 17.8 | 18.4 |
| 2 | 86 | 76 | 19 | 19.2 |
| 2½ | 92 | 92 | 23.6 | 28.9 |
| 3 | 108 | 108 | 25.9 | 30.5 |
| 4 | 121 | 140 | 27.7 | 33 |
Dmensions of Threaded Full Coupling - NPS 1/2 to 4 - 6000 LBS - ASME B16.11
| NPS | End to End | Outside Diameter | Minimum Length of Thread | |
|---|---|---|---|---|
| A | D | B | J | |
| 1/2 | 48 | 38 | 10.9 | 13.6 |
| 3/4 | 51 | 44 | 12.7 | 13.9 |
| 1 | 60 | 57 | 14.7 | 17.3 |
| 1¼ | 67 | 64 | 17 | 18 |
| 1½ | 79 | 76 | 17.8 | 18.4 |
| 2 | 86 | 92 | 19 | 19.2 |
| 2½ | 92 | 108 | 23.6 | 28.9 |
| 3 | 108 | 127 | 25.9 | 30.5 |
| 4 | 121 | 159 | 27.7 | 33 |
