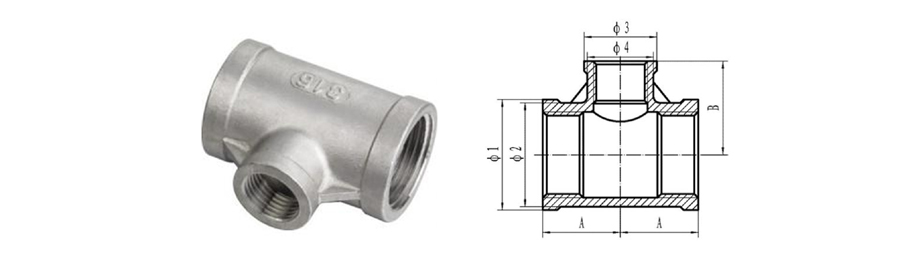

Threaded Unequal Tee
ASTM A182 Stainless Steel 300 Series Threaded Unequal Tee, SS Threaded Unequal Tee, A234 AISI 4130 3000LB Threaded Unequal Tee, Alloy Steel Threaded Unequal Tee, Duplex Steel Threaded Unequal Tee, Nickel Alloy Threaded Unequal Tee Manufacturer in Mumbai, India.
Shikhar Steel is a prominent leader in Supplier & Exporter of Threaded Unequal Tee in India. Threaded Pipe Reducing Tee have the same inlet and outlet sizes. Threaded Reducing Tee Fittings are used in different industries applications like chemical processing, oil refineries, petrochemical and many other industries.We also supply Forged Threaded Tee in customized size as per customer requirement. Threaded / Screwed Unequal Tees are used to divide or merge the flow of fluids. They have dimensional accuracy and corrosion resistance. These Stainless Steel Unequal Tees also have great tolerance to high pressure. These fittings are used in different applications like cement industries, ship building companies and paper plants.
Our offered range of ASME B16.11 / BS3799 Threaded Unequal Tee is known for their low maintenance, weather resistance, high strength, easy to install and strong construction and are available in various diameters and at market leading price.
BS3799 Threaded Unequal Tee, Inconel Threaded Unequal Tee, Monel Threaded Unequal Tee, Hastelloy Threaded Unequal Tee, Alloy 20 Threaded Unequal Tee, Copper Nickel Threaded Unequal Tee, Titanium Threaded Unequal Tee, 6000LB 45 Deg Unequal Tee Suppliers in India.
Key Charactristic:
- Corrosion resistance
- Resistance to oxidation and sulfidation
- Cryogenic strength
- Resistance to abrasion and erosion
- Surface finish
- Magnetic properties
- Ductility
- Elevated temperature strength
- Stability of properties in service
- Suitability for intended fabrication techniques
Threaded Unequal Tee Specifications
| Fittings | TThreaded Unequal Tee |
| Standard | ASME A182, ASME B16.9, ASME B16.11, MSS SP-43, MSS SP-95, BS3799 |
| Dimension | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size | 1/8" NB~4" NB |
| Class | 3000 LBS, 6000 LBS, 4500 LBS |
| Form | Unequal Tee, Forged Unequal Tee, Reducing Threaded Unequal Tee. |
Threaded Unequal Tee Material & Grades
| Stainless Steel Threaded Unequal Tee |
ASTM A182 F304, F304L, F306, F316L, F304H, F309S, F309H, F310S, F310H, F316TI, F316H, F316LN, F317, F317L, F321, F321H, F11, F22, F91, F347, F347H, F904L, ASTM A312/A403 TP304, TP304L, TP316, TP316L |
| Alloy Steel Threaded Unequal Tee |
ASTM / ASME A 182, ASTM / ASME A 335, ASTM / ASME A 234 GR P 1, P 5, P 9, P 11, P 12, P 22, P 23, P 91, ASTM / ASME A 691 GR 1 CR, 1 1/4 CR, 2 1/4 CR, 5 CR, 9CR, 91 |
| Carbon Steel Threaded Unequal Tee |
ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2, ASTM / ASME A 53 GR. A & B, ASTM A 106 GR. A, B & C. API 5L GR. B, API 5L X 42, X 46, X 52, X 60, X 65 & X 70. ASTM / ASME A 691 GR A, B & C |
| Copper Alloy Threaded Unequal Tee |
ASTM / ASME SB 111 UNS NO. C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 C 71500, ASTM / ASME SB 466 UNS NO. C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30) |
| Nickel Alloy Threaded Unequal Tee |
ASTM / ASME SB 336, ASTM / ASME SB 564 / 160 / 163 / 472, UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201 ) , UNS 4400 (MONEL 400 ) , UNS 8020 ( ALLOY 20 / 20 CB 3 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) , UNS 10276 (HASTELLOY C 276) |
| Duplex Stainless Steel Threaded Unequal Tee |
ASTM / ASME A/SA 182 UNS F 44, F 45, F51, F 53, F 55, F 60, F 61. |
Dimensions of Threaded Unequal Tee - NPS 1/2 to 4 - 2000 LBS - ASME B16.11
| NPS | Minimum Length of Thread |
Outside Diameter of Band D |
Center to End A |
Minimum Wall Thickness |
|
| B | J | ||||
| 1/2 | 10.9 | 13.6 | 38 | 33 | 4.09 |
| 3/4 | 12.7 | 13.9 | 46 | 38 | 4.32 |
| 1 | 14.7 | 17.3 | 56 | 44 | 4.98 |
| 1¼ | 17 | 18 | 62 | 51 | 5.28 |
| 1½ | 17.8 | 18.4 | 75 | 60 | 5.56 |
| 2 | 19 | 19.2 | 84 | 64 | 7.14 |
| 2½ | 23.6 | 28.9 | 102 | 83 | 7.65 |
| 3 | 25.9 | 30.5 | 121 | 95 | 8.84 |
| 4 | 27.7 | 33 | 152 | 114 | 11.18 |
Dimensions of Threaded Unequal Tee - NPS 1/2 to 4 - 3000 LBS- ASME B16.11
| NPS | Minimum Length of Thread |
Outside Diameter of Band D |
Center to End A |
Minimum Wall Thickness |
|
| B | J | ||||
| 1/2 | 10.9 | 13.6 | 38 | 33 | 4.09 |
| 3/4 | 12.7 | 13.9 | 46 | 38 | 4.32 |
| 1 | 14.7 | 17.3 | 56 | 44 | 4.98 |
| 1¼ | 17 | 18 | 62 | 51 | 5.28 |
| 1½ | 17.8 | 18.4 | 75 | 60 | 5.56 |
| 2 | 19 | 19.2 | 84 | 64 | 7.14 |
| 2½ | 23.6 | 28.9 | 102 | 83 | 7.65 |
| 3 | 25.9 | 30.5 | 121 | 95 | 8.84 |
| 4 | 27.7 | 33 | 152 | 114 | 11.18 |
Dmensions of Threaded Unequal Tee - NPS 1/2 to 4 - 6000 LBS - ASME B16.11
| NPS | Minimum Length of Thread |
Outside Diameter of Band D |
Center to End A |
Minimum Wall Thickness |
|
| B | J | ||||
| 1/2 | 10.9 | 13.6 | 46 | 38 | 8.15 |
| 3/4 | 12.7 | 13.9 | 56 | 44 | 8.53 |
| 1 | 14.7 | 17.3 | 62 | 51 | 9.93 |
| 1¼ | 17 | 18 | 75 | 60 | 10.59 |
| 1½ | 17.8 | 18.4 | 84 | 64 | 11.07 |
| 2 | 19 | 19.2 | 102 | 83 | 12.09 |
| 2½ | 23.6 | 28.9 | 121 | 95 | 15.29 |
| 3 | 25.9 | 30.5 | 146 | 106 | 16.64 |
| 4 | 27.7 | 33 | 152 | 114 | 18.67 |
