Threaded Half Coupling

ASTM A182 Stainless Steel 300 Series Threaded Half Coupling, SS Threaded Half Coupling, A234 AISI 4130 3000LB Threaded Half Coupling, Alloy Steel Threaded Half Coupling, Duplex Steel Threaded Half Coupling, Nickel Alloy Threaded Half Coupling Manufacturer in Mumbai, India.

Shikhar Steel is a prominent leader in supplying and exporting Threaded Half Coupling in India. Our offered Threaded Half Coupling help to withstand multiple cycles of tightening that lead to loosening of the threads during the drilling process.Threaded Coupling may be welded to the pipe or can be screwed to the pipe as per the requirements and manufactured as per with national and international quality standards. A Stainless Steel Threaded Half Coupling can be directly welded to the run of the pipe to make a branch connection. A Screwed Coupling is a fitting that helps to extend or terminate a pipe run. It connects two pipes to each other. They are custom manufactured to be compatible with many types.

Our offered range of ASME B16.11 / BS3799 Threaded Half Coupling is known for Accurate threaded length, precise angle with three sided diversion, Screwed Female end to BSP. We produce these Carbon Steel Half Coupling using high grade of raw material by implementing most ultra modern technology.

BS3799 Threaded Half Coupling, Inconel Threaded Half Coupling, Monel Threaded Half Coupling, Hastelloy Threaded Half Coupling, Alloy 20 Threaded Half Coupling, Copper Nickel Threaded Half Coupling, Titanium Threaded Half Coupling, 6000LB Threaded Half Coupling Suppliers in India.

Key Charactristic:

• Corrosion resistance
• Resistance to oxidation and sulfidation
• Cryogenic strength
• Resistance to abrasion and erosion
• Surface finish
• Magnetic properties
• Ductility
• Elevated temperature strength
• Stability of properties in service
• Suitability for intended fabrication techniques

Fittings	Threaded Half Coupling
Standard	ASME A182, ASME B16.9, ASME B16.11, MSS SP-43, MSS SP-95, BS3799
Dimension	ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size	1/8" NB~4" NB
Class	3000 LBS, 6000 LBS, 4500 LBS
Form	Coupling, Half Coupling, Reducing Half Coupling.

Stainless Steel Threaded Half Coupling	ASTM A182 F304, F304L, F306, F316L, F304H, F309S, F309H, F310S, F310H, F316TI, F316H, F316LN, F317, F317L, F321, F321H, F11, F22, F91, F347, F347H, F904L, ASTM A312/A403 TP304, TP304L, TP316, TP316L
Alloy Steel Threaded Half Coupling	ASTM / ASME A 182, ASTM / ASME A 335, ASTM / ASME A 234 GR P 1, P 5, P 9, P 11, P 12, P 22, P 23, P 91, ASTM / ASME A 691 GR 1 CR, 1 1/4 CR, 2 1/4 CR, 5 CR, 9CR, 91
Carbon Steel Threaded Half Coupling	ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2, ASTM / ASME A 53 GR. A & B, ASTM A 106 GR. A, B & C. API 5L GR. B, API 5L X 42, X 46, X 52, X 60, X 65 & X 70. ASTM / ASME A 691 GR A, B & C
Copper Alloy Threaded Half Coupling	ASTM / ASME SB 111 UNS NO. C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 C 71500, ASTM / ASME SB 466 UNS NO. C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30)
Nickel Alloy Threaded Half Coupling	ASTM / ASME SB 336, ASTM / ASME SB 564 / 160 / 163 / 472, UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201 ) , UNS 4400 (MONEL 400 ) , UNS 8020 ( ALLOY 20 / 20 CB 3 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) , UNS 10276 (HASTELLOY C 276)
Duplex Stainless Steel Threaded Half Coupling	ASTM / ASME A/SA 182 UNS F 44, F 45, F51, F 53, F 55, F 60, F 61.

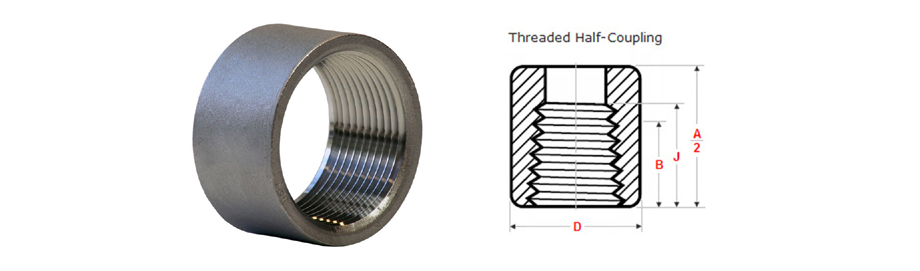

NPS	End to End	Outside Diameter	Minimum Length of Thread
	A	D	B	J
1/2	48	28	10.9	13.6
3/4	51	35	12.7	13.9
1	60	44	14.7	17.3
1¼	67	57	17	18
1½	79	64	17.8	18.4
2	86	76	19	19.2
2½	92	92	23.6	28.9
3	108	108	25.9	30.5
4	121	140	27.7	33

NPS	End to End	Outside Diameter	Minimum Length of Thread
	A	D	B	J
1/2	48	38	10.9	13.6
3/4	51	44	12.7	13.9
1	60	57	14.7	17.3
1¼	67	64	17	18
1½	79	76	17.8	18.4
2	86	92	19	19.2
2½	92	108	23.6	28.9
3	108	127	25.9	30.5
4	121	159	27.7	33

---
