Threaded Tee
ASTM A182 Stainless Steel 300 Series Threaded Tee, SS Threaded Tee, A234 AISI 4130 3000LB Threaded Tee, Alloy Steel Threaded Tee, Duplex Steel Threaded Tee, Nickel Alloy Threaded Tee Manufacturer in Mumbai, India.
Shikhar Steel is a prominent leader in Supplier & Exporter of Threaded Tee in India. Threaded Pipe Tee have the same inlet and outlet sizes. Threaded Tee Fittings are used in different industries applications like chemical processing, oil refineries, petrochemical and many other industries.We also supply Forged Threaded Tee in customized size as per customer requirement. It is an ISO certified company that makes sure to look after the needs of the customers. A Stainless Steel Screwed Equal Tee is either used to combine or split a fluid flow. These tees have the same inlet and outlet sizes. They are used for branching off, especially in low pressure services.
We are known exporter of Stainless Steel Threaded Tee has features like Affordable prices, Excellent performance, Precisely designed, High reliability, High efficiency, and long service life and more. Our offered range of SS Threaded Tee is known for their low maintenance, high strength, weather resistance, easy to install and strong construction and are available in various diameters and at market leading price.
BS3799 Threaded Tee, Inconel Threaded Tee, Monel Threaded Tee, Hastelloy Threaded Tee, Alloy 20 Threaded Tee, Copper Nickel Threaded Tee, Titanium Threaded Tee, 6000LB 45 Deg Threaded Elbow Suppliers in India.
Key Charactristic:
- Corrosion resistance
- Resistance to oxidation and sulfidation
- Cryogenic strength
- Resistance to abrasion and erosion
- Surface finish
- Magnetic properties
- Ductility
- Elevated temperature strength
- Stability of properties in service
- Suitability for intended fabrication techniques
Threaded Tee Specifications
| Fittings | Threaded Tee |
| Standard | ASME A182, ASME B16.9, ASME B16.11, MSS SP-43, MSS SP-95, BS3799 |
| Dimension | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size | 1/8" NB~4" NB |
| Class | 3000 LBS, 6000 LBS, 4500 LBS |
| Form | Equal Tee, Forged Tee, Cross Tee. |
Threaded Tee Material & Grades
| Stainless Steel Threaded Tee |
ASTM A182 F304, F304L, F306, F316L, F304H, F309S, F309H, F310S, F310H, F316TI, F316H, F316LN, F317, F317L, F321, F321H, F11, F22, F91, F347, F347H, F904L, ASTM A312/A403 TP304, TP304L, TP316, TP316L |
| Alloy Steel Threaded Tee |
ASTM / ASME A 182, ASTM / ASME A 335, ASTM / ASME A 234 GR P 1, P 5, P 9, P 11, P 12, P 22, P 23, P 91, ASTM / ASME A 691 GR 1 CR, 1 1/4 CR, 2 1/4 CR, 5 CR, 9CR, 91 |
| Carbon Steel Threaded Tee |
ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2, ASTM / ASME A 53 GR. A & B, ASTM A 106 GR. A, B & C. API 5L GR. B, API 5L X 42, X 46, X 52, X 60, X 65 & X 70. ASTM / ASME A 691 GR A, B & C |
| Copper Alloy Threaded Tee |
ASTM / ASME SB 111 UNS NO. C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 C 71500, ASTM / ASME SB 466 UNS NO. C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30) |
| Nickel Alloy Threaded Tee |
ASTM / ASME SB 336, ASTM / ASME SB 564 / 160 / 163 / 472, UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201 ) , UNS 4400 (MONEL 400 ) , UNS 8020 ( ALLOY 20 / 20 CB 3 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) , UNS 10276 (HASTELLOY C 276) |
| Duplex Stainless Steel Threaded Tee |
ASTM / ASME A/SA 182 UNS F 44, F 45, F51, F 53, F 55, F 60, F 61. |

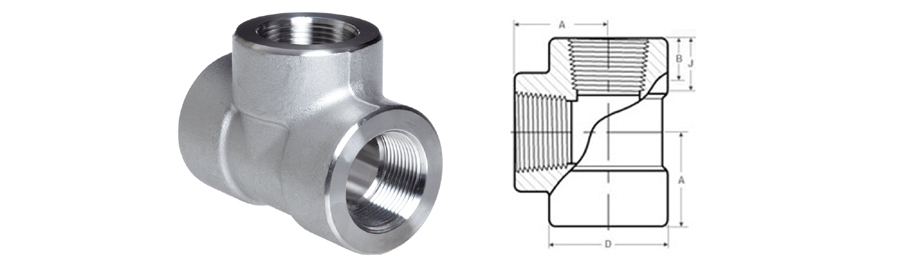

Dimensions of Threaded Tee - NPS 1/2 to 4 - 2000 LBS - ASME B16.11
| NPS | Minimum Length of Thread |
Outside Diameter of Band D |
Center to End A |
Minimum Wall Thickness |
|
| B | J | ||||
| 1/2 | 10.9 | 13.6 | 33 | 28 | 3.18 |
| 3/4 | 12.7 | 13.9 | 38 | 33 | 3.18 |
| 1 | 14.7 | 17.3 | 46 | 38 | 3.68 |
| 1¼ | 17 | 18 | 56 | 44 | 3.89 |
| 1½ | 17.8 | 18.4 | 62 | 51 | 4.01 |
| 2 | 19 | 19.2 | 75 | 60 | 4.27 |
| 2½ | 23.6 | 28.9 | 92 | 76 | 5.61 |
| 3 | 25.9 | 30.5 | 109 | 86 | 5.99 |
| 4 | 27.7 | 33 | 146 | 106 | 6.55 |
Dimensions of Threaded Tee - NPS 1/2 to 4 - 3000 LBS- ASME B16.11
| NPS | Minimum Length of Thread |
Outside Diameter of Band D |
Center to End A |
Minimum Wall Thickness |
|
| B | J | ||||
| 1/2 | 10.9 | 13.6 | 38 | 33 | 4.09 |
| 3/4 | 12.7 | 13.9 | 46 | 38 | 4.32 |
| 1 | 14.7 | 17.3 | 56 | 44 | 4.98 |
| 1¼ | 17 | 18 | 62 | 51 | 5.28 |
| 1½ | 17.8 | 18.4 | 75 | 60 | 5.56 |
| 2 | 19 | 19.2 | 84 | 64 | 7.14 |
| 2½ | 23.6 | 28.9 | 102 | 83 | 7.65 |
| 3 | 25.9 | 30.5 | 121 | 95 | 8.84 |
| 4 | 27.7 | 33 | 152 | 114 | 11.18 |
Dmensions of Threaded Tee - NPS 1/2 to 4 - 6000 LBS - ASME B16.11
| NPS | Minimum Length of Thread |
Outside Diameter of Band D |
Center to End A |
Minimum Wall Thickness |
|
| B | J | ||||
| 1/2 | 10.9 | 13.6 | 46 | 38 | 8.15 |
| 3/4 | 12.7 | 13.9 | 56 | 44 | 8.53 |
| 1 | 14.7 | 17.3 | 62 | 51 | 9.93 |
| 1¼ | 17 | 18 | 75 | 60 | 10.59 |
| 1½ | 17.8 | 18.4 | 84 | 64 | 11.07 |
| 2 | 19 | 19.2 | 102 | 83 | 12.09 |
| 2½ | 23.6 | 28.9 | 121 | 95 | 15.29 |
| 3 | 25.9 | 30.5 | 146 | 106 | 16.64 |
| 4 | 27.7 | 33 | 152 | 114 | 18.67 |
