Threaded Cross
ASTM A182 Stainless Steel 300 Series Threaded Cross, SS Threaded Cross, A234 AISI 4130 3000LB Threaded Cross, Alloy Steel Threaded Cross, Duplex Steel Threaded Cross, Nickel Alloy Threaded Cross Manufacturer in Mumbai, India.
Shikhar Steel is a prominent leader in supplying and exporting Threaded Cross in India. Threaded Pipe Cross which meets with national and international quality standards and producing base which owns equipments conforming to international technical level and is well equipped with a whole set of advanced plasma refining equipments. Threaded Cross Pipe Fittings are used in different industries applications like chemical processing, oil refineries, petrochemical and many other industries. Threaded Cross fittings make a 90° branch from the main run of the pipe. It can be used for providing leak free and torque free sealing in any piping or tubing connection. It is a fitting that is rarely used in a piping system but is an essential part of it nonetheless.
Our offered range of Stainless Steel Threaded Cross is known for Accurate threaded length, precise angle with three sided diversion, Screwed Female end to BSP. We produce these Inconel Threaded Cross using high grade of raw material by implementing most ultra modern technology.
BS3799 Threaded Cross, Inconel Threaded Cross, Monel Threaded Cross, Hastelloy Threaded Cross, Alloy 20 Threaded Cross, Copper Nickel Threaded Cross, Titanium Threaded Cross, 6000LB 45 Deg Unequal Tee Suppliers in India.
Key Charactristic:
- Corrosion resistance
- Resistance to oxidation and sulfidation
- Cryogenic strength
- Resistance to abrasion and erosion
- Surface finish
- Magnetic properties
- Ductility
- Elevated temperature strength
- Stability of properties in service
- Suitability for intended fabrication techniques
Threaded Cross Specifications
| Fittings | Threaded Cross |
| Standard | ASME A182, ASME B16.9, ASME B16.11, MSS SP-43, MSS SP-95, BS3799 |
| Dimension | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size | 1/8" NB~4" NB |
| Class | 3000 LBS, 6000 LBS, 4500 LBS |
| Form | Cross, Forged Cross, Threaded Equal Cross. |
Threaded Cross Material & Grades
| Stainless Steel Threaded Cross |
ASTM A182 F304, F304L, F306, F316L, F304H, F309S, F309H, F310S, F310H, F316TI, F316H, F316LN, F317, F317L, F321, F321H, F11, F22, F91, F347, F347H, F904L, ASTM A312/A403 TP304, TP304L, TP316, TP316L |
| Alloy Steel Threaded Cross |
ASTM / ASME A 182, ASTM / ASME A 335, ASTM / ASME A 234 GR P 1, P 5, P 9, P 11, P 12, P 22, P 23, P 91, ASTM / ASME A 691 GR 1 CR, 1 1/4 CR, 2 1/4 CR, 5 CR, 9CR, 91 |
| Carbon Steel Threaded Cross |
ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2, ASTM / ASME A 53 GR. A & B, ASTM A 106 GR. A, B & C. API 5L GR. B, API 5L X 42, X 46, X 52, X 60, X 65 & X 70. ASTM / ASME A 691 GR A, B & C |
| Copper Alloy Threaded Cross |
ASTM / ASME SB 111 UNS NO. C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 C 71500, ASTM / ASME SB 466 UNS NO. C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30) |
| Nickel Alloy Threaded Cross |
ASTM / ASME SB 336, ASTM / ASME SB 564 / 160 / 163 / 472, UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201 ) , UNS 4400 (MONEL 400 ) , UNS 8020 ( ALLOY 20 / 20 CB 3 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) , UNS 10276 (HASTELLOY C 276) |
| Duplex Stainless Steel Threaded Cross |
ASTM / ASME A/SA 182 UNS F 44, F 45, F51, F 53, F 55, F 60, F 61. |

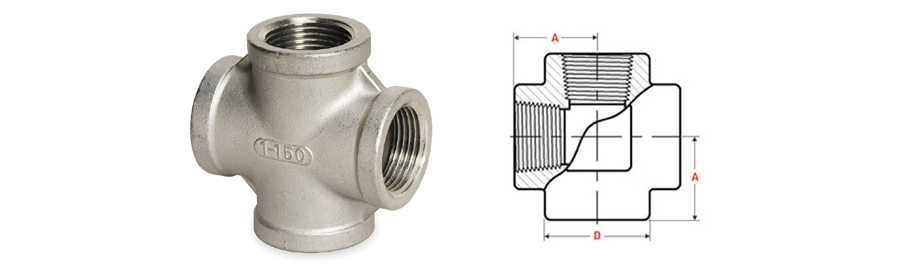

Dimensions of Threaded Cross - NPS 1/2 to 4 - 2000 LBS - ASME B16.11
| NPS | Minimum Length of Thread |
Outside Diameter of Band D |
Center to End A |
Minimum Wall Thickness |
|
| B | J | ||||
| 1/2 | 10.9 | 13.6 | 33 | 28 | 3.18 |
| 3/4 | 12.7 | 13.9 | 38 | 33 | 3.18 |
| 1 | 14.7 | 17.3 | 46 | 38 | 3.68 |
| 1¼ | 17 | 18 | 56 | 44 | 3.89 |
| 1½ | 17.8 | 18.4 | 62 | 51 | 4.01 |
| 2 | 19 | 19.2 | 75 | 60 | 4.27 |
| 2½ | 23.6 | 28.9 | 92 | 76 | 5.61 |
| 3 | 25.9 | 30.5 | 109 | 86 | 5.99 |
| 4 | 27.7 | 33 | 146 | 106 | 6.55 |
Dimensions of Threaded Cross - NPS 1/2 to 4 - 3000 LBS- ASME B16.11
| NPS | Minimum Length of Thread |
Outside Diameter of Band D |
Center to End A |
Minimum Wall Thickness |
|
| B | J | ||||
| 1/2 | 10.9 | 13.6 | 38 | 33 | 4.09 |
| 3/4 | 12.7 | 13.9 | 46 | 38 | 4.32 |
| 1 | 14.7 | 17.3 | 56 | 44 | 4.98 |
| 1¼ | 17 | 18 | 62 | 51 | 5.28 |
| 1½ | 17.8 | 18.4 | 75 | 60 | 5.56 |
| 2 | 19 | 19.2 | 84 | 64 | 7.14 |
| 2½ | 23.6 | 28.9 | 102 | 83 | 7.65 |
| 3 | 25.9 | 30.5 | 121 | 95 | 8.84 |
| 4 | 27.7 | 33 | 152 | 114 | 11.18 |
Dmensions of Threaded Cross - NPS 1/2 to 4 - 6000 LBS - ASME B16.11
| NPS | Minimum Length of Thread |
Outside Diameter of Band D |
Center to End A |
Minimum Wall Thickness |
|
| B | J | ||||
| 1/2 | 10.9 | 13.6 | 46 | 38 | 8.15 |
| 3/4 | 12.7 | 13.9 | 56 | 44 | 8.53 |
| 1 | 14.7 | 17.3 | 62 | 51 | 9.93 |
| 1¼ | 17 | 18 | 75 | 60 | 10.59 |
| 1½ | 17.8 | 18.4 | 84 | 64 | 11.07 |
| 2 | 19 | 19.2 | 102 | 83 | 12.09 |
| 2½ | 23.6 | 28.9 | 121 | 95 | 15.29 |
| 3 | 25.9 | 30.5 | 146 | 106 | 16.64 |
| 4 | 27.7 | 33 | 152 | 114 | 18.67 |
