Bar Stock Needle Valve
Bar Stock Needle Valve Tube Fractional, Tube Metric, Female-Female NPT, Male-Female NPT Manufacturer in Mumbai,India.
Nickel Super Alloys is one of leading Supplier & Exporter of Bar Stock Needle Valve in India, Mumbai. We are the trusted name in the industry when it comes to the manufacture and supply of valves, fittings and industrial couplings with adapters. We have served a wide variety of industrial sectors, and supply products which conform to industry standard requirements and ensure safety and system efficiency with their precision design.
With rich expertise, we are offering a wide range of Needle Valves that is generally used in flow metering applications, especially when a constant, calibrated, low flow rate must be maintained for some time, such as the idle fuel flow in a carburetor. Our needle valves are appreciated in the market for low operating torque and high tensile strength.
Bar Stock Needle Valve Tube-Tube Metric, Bar Stock Needle Valve Female-Female NPT Exporter, Bar Stock Needle Valve Male-Female NPT Supplier in India
Key Features:
- Integral bonnet design
- One piece body construction for superior corrosion resistance spindle: ground and thread rolled.stem tip 17-4ph for long life. Dust cap protects stem threads from external contamination leak tight seal with low operating torque heat code traceability
- Packing: PTFE, Grafoil
- Panel mounting on request
- All Vales are 100% factory tested
Testing :
- Hydrostatic shell test is performed at 1.5 times the working pressure optional test are available upon request standard test
- Each valves is tested with nitrogen at 1,000 psi for seat & packing leakage, with a max. Allowable leak rate of 0.1 std.cm3/min.

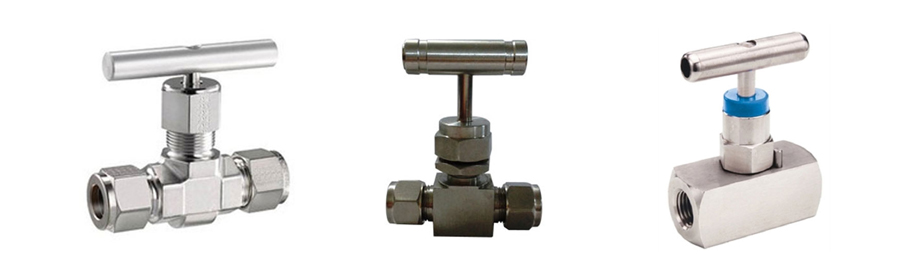

Types of Bar Stock Needle Valve
Tube Fractional
Tube Metric
Female-Female NPT
Technical Specification
SIZE |
A |
B |
CSQ |
WEIGHT (kg) |
1/4" |
93 |
55 |
25 |
0.36 |
3/8" |
93 |
55 |
25 |
0.37 |
1/2" |
95 |
66 |
28 |
0.46 |
3/4" |
109 |
70 |
38 |
0.8 |
1" |
117 |
80 |
45 |
1.3 |
Material of Construction
Stainless Steel | ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L, 304H, 316H, 316/316L, 321, 330, 347, 309/S, 310/S, 317/L, 333, 410/S, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404 |
Alloy Steel | ASTM SA 182 - E25, E26, E27, E28, E29B, E30B, E39B, E40B, E36B, E36C, E41B, AISI4130, AISI4140, AISI4340, 42CRMO4, 16MNCR5, 20MNCR5, 21CrMoV57, EN353, EN354, F11, F22, F91, F9, P11, P22, P91, P9, P5, P92, EN42J, EN8, EN19 |
Carbon Steel | ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70 |
Monel | Monel 400, Monel K500, Monel R-405 |
Nickel Alloy | Nickel 200, Nickel 201 |
Inconel | Inconel 600, Inconel 601, Inconel 625, Inconel 718 |
Incoloy | Incoloy 800, Inconel 800H, 800HT |
Hastalloy | Hastalloy B2, Hastalloy B3, Hastalloy C22, Hastalloy C276, Hastalloy X |
Titanium | Gr1, Gr2, Gr3, Gr5, Gr7, Gr11 |
Duplex Steel | ASTM / ASME A/SA 182 UNS F44, F45, F51, F53, F55, F60, F61 |
