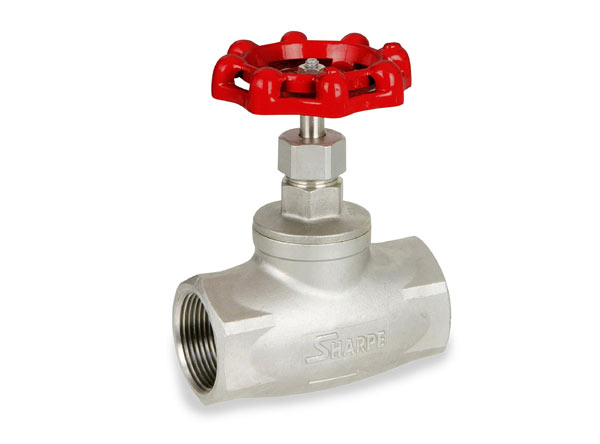

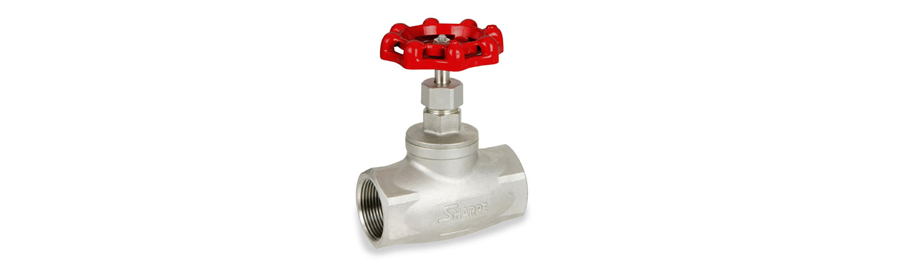

Screwed Bonnet Valve
Stainless Steel Screwed Bonnet Valve Male-Female NPT, Alloy Steel Screwed Bonnet Valve Female-Female NPT Manufacturer in Mumbai,India.
Nickel Super Alloys is one of leading Supplier & Exporter of Screwed Bonnet Valve Male-Female NPT in India, Mumbai. Series 3000 bar stock, screwed bonnet type needle valves are available in brass, 303 & 316 stainless steel with working pressures to 5000 Psig in 1/8” to 1/2” sizes. The unique, externally adjustable, wear compensating, virgin PTFE stem packing offers long trouble free service life in most liquid or gas applications. Screwed Bonnet Valve Type S340 is available with a lot of options. This Screwed Bonnet Valve type is providing bonnets with external stem thread and is normally supplied as primary isolation valve. The valve seat is replaceable and the valve stem is provided with a cold rolled surface, back seat and a non-rotating needle tip.
We are the trusted name in the industry when it comes to the manufacture and supply of valves, fittings and industrial couplings with adapters. We have served a wide variety of industrial sectors, and supply products which conform to industry standard requirements and ensure safety and system efficiency with their precision design.
Inconel Screwed Bonnet Valve Female-Female NPT, Monel Screwed Bonnet Valve Male-Female NPT, Duplex Steel Screwed Bonnet Valve Female-Female NPT Supplier in India
Key Features:
- Bonnet Assembly : screwed bonnet design
- Bonnet : back seated blow out proof.
- Spindle : ground and thread rolled.
- Dust cap protects stem threads from external contamination.
- Packing below thread.
- Heat code traceability.
- Zero leak.
Testing :
- Standard test: each valves is tested with nitrogen at 1,000 psi for seat & packing leakage, with a max. Allowable leak rate of 0 .1 std. Cm3 / min .
- Hydrostatic shell test is performed at 1.5 times the working pressure. Optional test are available upon request.
Types of Screwed Bonnet Valve
Male-Female NPT
Technical Specification
SIZE |
A |
B |
CSQ |
WEIGHT (kg) |
1/4" |
93 |
55 |
25 |
0.36 |
3/8" |
93 |
55 |
25 |
0.37 |
1/2" |
95 |
66 |
28 |
0.46 |
3/4" |
109 |
70 |
38 |
0.8 |
1" |
117 |
80 |
45 |
1.3 |
Material of Construction
| Stainless Steel | ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L, 304H, 316H, 316/316L, 321, 330, 347, 309/S, 310/S, 317/L, 333, 410/S, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404 |
| Alloy Steel | ASTM SA 182 - E25, E26, E27, E28, E29B, E30B, E39B, E40B, E36B, E36C, E41B, AISI4130, AISI4140, AISI4340, 42CRMO4, 16MNCR5, 20MNCR5, 21CrMoV57, EN353, EN354, F11, F22, F91, F9, P11, P22, P91, P9, P5, P92, EN42J, EN8, EN19 |
| Carbon Steel | ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70 |
| Monel | Monel 400, Monel K500, Monel R-405 |
| Nickel Alloy | Nickel 200, Nickel 201 |
| Inconel | Inconel 600, Inconel 601, Inconel 625, Inconel 718 |
| Incoloy | Incoloy 800, Inconel 800H, 800HT |
| Hastalloy | Hastalloy B2, Hastalloy B3, Hastalloy C22, Hastalloy C276, Hastalloy X |
| Titanium | Gr1, Gr2, Gr3, Gr5, Gr7, Gr11 |
| Duplex Steel | ASTM / ASME A/SA 182 UNS F44, F45, F51, F53, F55, F60, F61 |
