Forged Needle Valve
Stainless Steel Forged Needle Valve Male-Female NPT, Alloy Steel Forged Needle Valve Female-Female NPT Manufacturer in Mumbai,India.
Nickel Super Alloys is one of leading Supplier & Exporter of Forged Needle Valve in India, Mumbai. The comprehensive range of Forged Needle Valve offered by us has earned huge accolades for its maintenance free life. It is has been designed under the strict supervision of our expert professionals, who ensure the range offered by us exceeds the expectations of the clients. Our range plays an important role in reducing the outlet size of a male fitting and in creating a smaller female fitting. The key specifications of our products include.
We are the trusted name in the industry when it comes to the manufacture and supply of Forged Needle Valve, fittings and industrial couplings with adapters. We have served a wide variety of industrial sectors, and supply products which conform to industry standard requirements and ensure safety and system efficiency with their precision design.
Carbon Steel Forged Needle Valve Tube-Tube Metric, Inconel & Monel Forged Needle Valve Tube-Tube Fractional Supplier in India
Key Features:
- One piece body , no weld joints.
- Spindle : ground and thread rolled.stem tip 17-4ph for long life.
Testing :
- Standard test: each valves is tested with nitrogen at 1,000 psi for seat & packing leakage, with a max. Allowable leak rate of 0 .1 std. Cm3 / min .
- Hydrostatic shell test is performed at 1.5 times the working pressure. Optional test are available upon request.

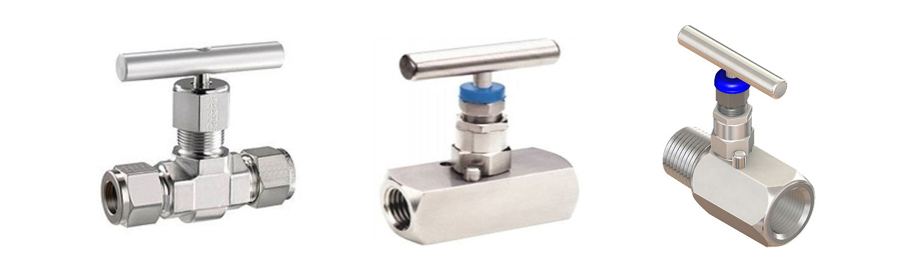

Types of Forged Needle Valve

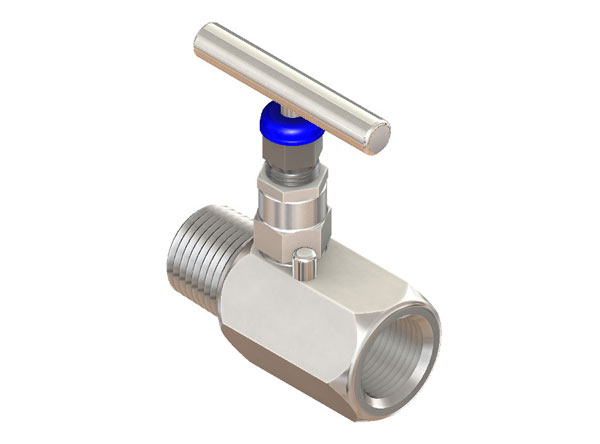

Male-Female NPT

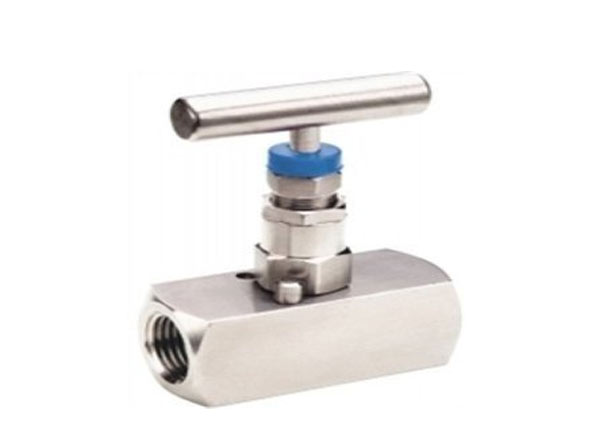

Female-Female NPT
Tube-Tube Metric
Technical Specification
SIZE |
A |
B |
CSQ |
WEIGHT (kg) |
1/4" |
93 |
55 |
25 |
0.36 |
3/8" |
93 |
55 |
25 |
0.37 |
1/2" |
95 |
66 |
28 |
0.46 |
3/4" |
109 |
70 |
38 |
0.8 |
1" |
117 |
80 |
45 |
1.3 |
Material of Construction
Stainless Steel | ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L, 304H, 316H, 316/316L, 321, 330, 347, 309/S, 310/S, 317/L, 333, 410/S, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404 |
Alloy Steel | ASTM SA 182 - E25, E26, E27, E28, E29B, E30B, E39B, E40B, E36B, E36C, E41B, AISI4130, AISI4140, AISI4340, 42CRMO4, 16MNCR5, 20MNCR5, 21CrMoV57, EN353, EN354, F11, F22, F91, F9, P11, P22, P91, P9, P5, P92, EN42J, EN8, EN19 |
Carbon Steel | ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70 |
Monel | Monel 400, Monel K500, Monel R-405 |
Nickel Alloy | Nickel 200, Nickel 201 |
Inconel | Inconel 600, Inconel 601, Inconel 625, Inconel 718 |
Incoloy | Incoloy 800, Inconel 800H, 800HT |
Hastalloy | Hastalloy B2, Hastalloy B3, Hastalloy C22, Hastalloy C276, Hastalloy X |
Titanium | Gr1, Gr2, Gr3, Gr5, Gr7, Gr11 |
Duplex Steel | ASTM / ASME A/SA 182 UNS F44, F45, F51, F53, F55, F60, F61 |
