Miniature Needle Valve
Stainless Steel Miniature Needle Valve Female-Female NPT, Alloy Steel Miniature Needle Valve Male-Female NPT Manufacturer in Mumbai,India.
Nickel Super Alloys is one of leading Supplier & Exporter of Miniature Needle Valve in India, Mumbai. As specialists in manufacturing of Miniature Needle Valve under one inch, we can create mini needle valve components that provide the functionality you need as well as offer an exceptional level of durability. Designed to regulate fine flows at low pressure, a needle flow control valve is the perfect solution in operations where the level of flow needs to be calibrated with great precision. Miniature Needle Valve is designed for leak free closure, regulation and management of fluids in process systems under High Pressure environment of 15000 psi.
We are the trusted name in the industry when it comes to the manufacture and supply of valves, fittings and industrial couplings with adapters. We have served a wide variety of industrial sectors, and supply products which conform to industry standard requirements and ensure safety and system efficiency with their precision design.
Inconel Miniature Needle Valve Male-Female NPT, Monel Miniature Needle Valve Male-Female NPT, Duplex Steel Miniature Needle Valve Female-Female NPT NPT Supplier in India
Key Features:
- Bonnet Assembly : screwed bonnet design
- Bonnet : back seated blow out proof.
- Spindle : ground and thread rolled.
- Dust cap protects stem threads from external contamination.
- Packing below thread.
- Heat code traceability.
- Zero leak.
Testing :
- Standard test: each valves is tested with nitrogen at 1,000 psi for seat & packing leakage, with a max. Allowable leak rate of 0 .1 std. Cm3 / min .
- Hydrostatic shell test is performed at 1.5 times the working pressure. Optional test are available upon request.

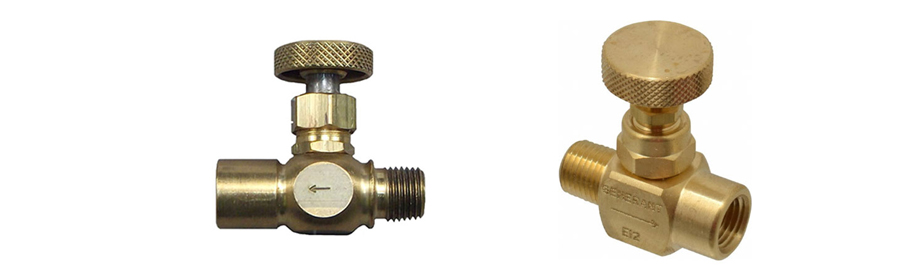

Types of Miniature Needle Valve

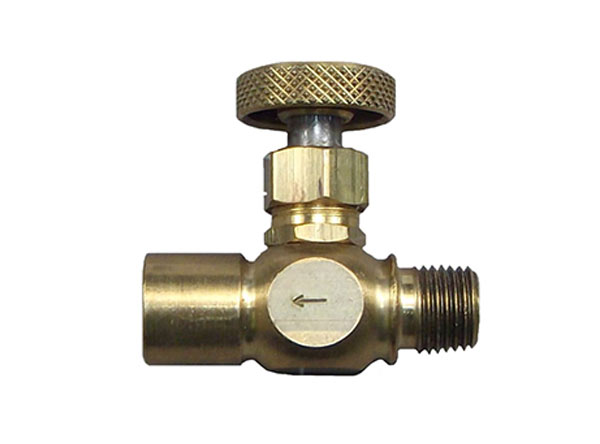

Female-Female NPT

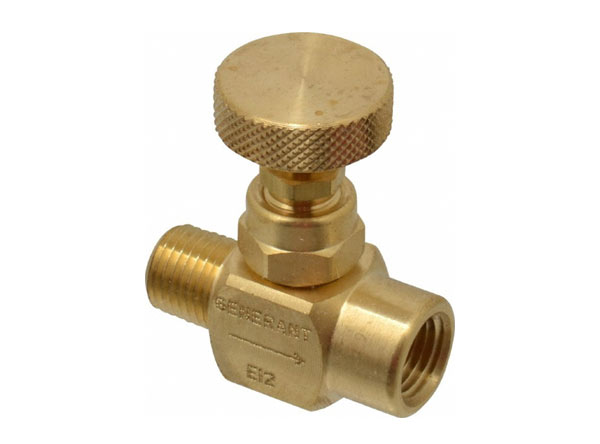

Male-Female NPT
Technical Specification
SIZE |
A |
B |
CSQ |
WEIGHT (kg) |
1/4" |
93 |
55 |
25 |
0.36 |
3/8" |
93 |
55 |
25 |
0.37 |
1/2" |
95 |
66 |
28 |
0.46 |
3/4" |
109 |
70 |
38 |
0.8 |
1" |
117 |
80 |
45 |
1.3 |
Material of Construction
| Stainless Steel | ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L, 304H, 316H, 316/316L, 321, 330, 347, 309/S, 310/S, 317/L, 333, 410/S, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404 |
| Alloy Steel | ASTM SA 182 - E25, E26, E27, E28, E29B, E30B, E39B, E40B, E36B, E36C, E41B, AISI4130, AISI4140, AISI4340, 42CRMO4, 16MNCR5, 20MNCR5, 21CrMoV57, EN353, EN354, F11, F22, F91, F9, P11, P22, P91, P9, P5, P92, EN42J, EN8, EN19 |
| Carbon Steel | ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70 |
| Monel | Monel 400, Monel K500, Monel R-405 |
| Nickel Alloy | Nickel 200, Nickel 201 |
| Inconel | Inconel 600, Inconel 601, Inconel 625, Inconel 718 |
| Incoloy | Incoloy 800, Inconel 800H, 800HT |
| Hastalloy | Hastalloy B2, Hastalloy B3, Hastalloy C22, Hastalloy C276, Hastalloy X |
| Titanium | Gr1, Gr2, Gr3, Gr5, Gr7, Gr11 |
| Duplex Steel | ASTM / ASME A/SA 182 UNS F44, F45, F51, F53, F55, F60, F61 |
