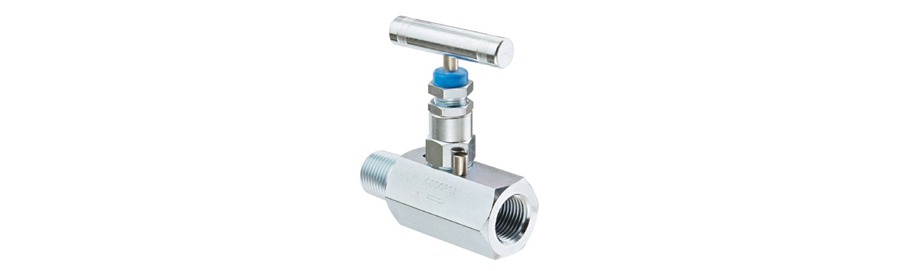

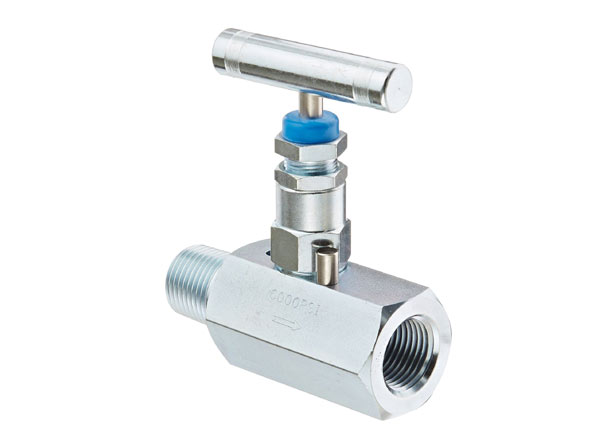

Angle Needle Valve Male-Female NPT

Angle Needle Valve Male-Female NPT, Duplex Steel Angle Needle Valve Male-Female NPT Manufacturer in Mumbai,India.

Nickel Super Alloys is one of leading Manufacturer & Supplier of Angle Needle Valve Male-Female NPT in India. Angle Needle Valve Type S 360 is available with a lot of options. This valve type is providing, as standard, internal stem thread, an integral valve seat and a non-rotating needle tip. The valve body is die-forged. Angle Needle Valves is designed for leak free closure, regulation and management of fluids in process systems under High Pressure environment of 15000 psi . With a wide variety of port sizes, end connections, style, temperature and pressure tolerance FAV High Pressure Needle Valves 15000 psi are critical for instrumentation, fluid and process control system. They are available in NPT ,BSP ,Size 1/4″ to 1″

We are the trusted name in the industry when it comes to the manufacture and supply of valves, fittings and industrial couplings with adapters. We have served a wide variety of industrial sectors, and supply products which conform to industry standard requirements and ensure safety and system efficiency with their precision design.

Inconel Angle Needle Valve Male-Female NPT, Monel Angle Needle Valve Male-Female NPT, Duplex Steel Angle Needle Valve Male-Female NPT Supplier in India

Key Features:

• One piece body construction for high strength & full safety , no welding ss316 one piece body construction for superior corrosion resistance excellent surge and instrument damage
• Spindle : ground and thread rolled.stem tip 17-4ph for long life.

Testing :

• Standard Test : each valves is tested with nitrogen at 1000 psi for seat & packing leakage, with a max. Allowable leak rate of 0.1 std.cm3/min.
• Hydro Test : performed with pure water at 1-1/2 times of the working pressure. Temperature and helium leak tests are available upon request maximum working pressure 10,000 psi (700 bar) application refineries,liquid petroleum gas,processing plant systems difficult to shut offdue to solid contents dust,rust etc.

SIZE	A	B	CSQ	WEIGHT (kg)
1/4"	93	55	25	0.36
3/8"	93	55	25	0.37
1/2"	95	66	28	0.46
3/4"	109	70	38	0.8
1"	117	80	45	1.3

Stainless Steel	ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L, 304H, 316H, 316/316L, 321, 330, 347, 309/S, 310/S, 317/L, 333, 410/S, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404
Alloy Steel	ASTM SA 182 - E25, E26, E27, E28, E29B, E30B, E39B, E40B, E36B, E36C, E41B, AISI4130, AISI4140, AISI4340, 42CRMO4, 16MNCR5, 20MNCR5, 21CrMoV57, EN353, EN354, F11, F22, F91, F9, P11, P22, P91, P9, P5, P92, EN42J, EN8, EN19
Carbon Steel	ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70
Monel	Monel 400, Monel K500, Monel R-405
Nickel Alloy	Nickel 200, Nickel 201
Inconel	Inconel 600, Inconel 601, Inconel 625, Inconel 718
Incoloy	Incoloy 800, Inconel 800H, 800HT
Hastalloy	Hastalloy B2, Hastalloy B3, Hastalloy C22, Hastalloy C276, Hastalloy X
Titanium	Gr1, Gr2, Gr3, Gr5, Gr7, Gr11
Duplex Steel	ASTM / ASME A/SA 182 UNS F44, F45, F51, F53, F55, F60, F61
