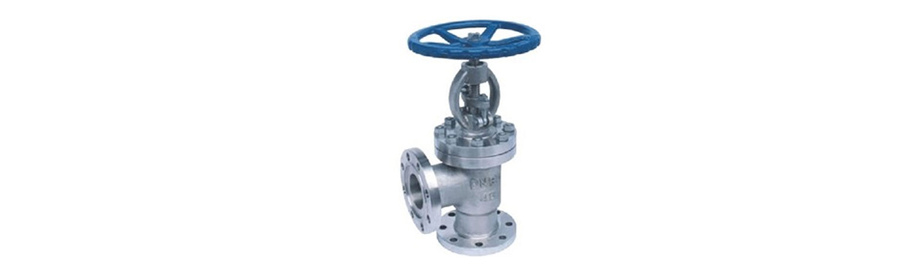

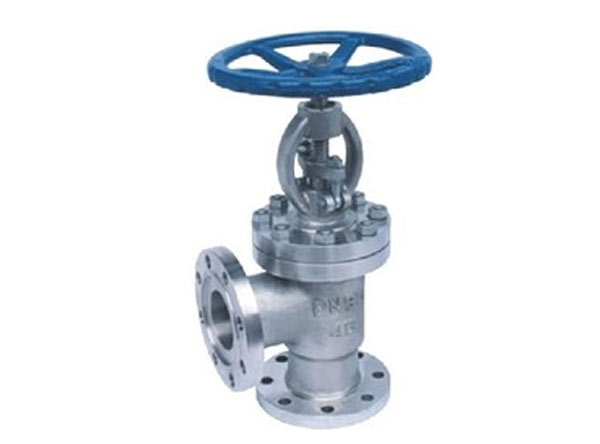

Angle Type Globe Valves

Angle Type Globe Valves, Stainless Steel Angle Type Globe Valves, Alloy Steel Angle Type Globe Valves, Carbon Steel Angle Type Globe Valves Manufacturer in Mumbai,India.

Nickel Super Alloys is one of leading Supplier & Exporter of Angle Type Globe Valves in India, Mumbai. These products are widely demanded and appreciated by our patrons due to their durability and performance. Our valuable clients can avail these high quality products as per clients' specification and requirement in competitive prices. The angle globe valve according to API and DIN is applicable to the cutting and connection of pipelines medium that are used in various industries such as petroleum, chemical industry pharmacy, chemical fertilizer, electric power industry etc under nominal pressure of PN 1.6-16Mpa and working temperature of -29-350 ºC.

The globe plug can be at any position between fully opened and fully closed to control flow through the valve. The globe and seat construction gives the valve good flow regulation characteristics. Turbulent flow past the seat and plug, when the valve is open, results in a relatively high pressure drop, limited flow capacity, and low recovery.

Angle Type Globe Valves, Inconel Angle Type Globe Valves, Monel Angle Type Globe Valves, Duplex Steel Angle Type Globe Valves Supplier in India

Key Features:

• This product has logical structure,reliable seal,excellent performance and nice design.
• The seal surface is build-up welding with Co hard alloy,which is attrition-resistant,corrosion-resistant,has good friction resistant and long life.
• The stem is quenched and tempered,and its surface is tre-ated by nitriding treatment,thus it has good corrosion resistant and friction resistant.
• It has double seal capability,thusmore reliable.

Application :

• Naptha and naptha derivatives in oil refineries
• Water, steam, air, gas and liquids having corrosive properties
• Suitable for wide range of working conditions of pressures and temperature ratings

SIZE	A	B	CSQ	WEIGHT (kg)
1/4"	93	55	25	0.36
3/8"	93	55	25	0.37
1/2"	95	66	28	0.46
3/4"	109	70	38	0.8
1"	117	80	45	1.3

Stainless Steel	ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L, 304H, 316H, 316/316L, 321, 330, 347, 309/S, 310/S, 317/L, 333, 410/S, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404
Alloy Steel	ASTM SA 182 - E25, E26, E27, E28, E29B, E30B, E39B, E40B, E36B, E36C, E41B, AISI4130, AISI4140, AISI4340, 42CRMO4, 16MNCR5, 20MNCR5, 21CrMoV57, EN353, EN354, F11, F22, F91, F9, P11, P22, P91, P9, P5, P92, EN42J, EN8, EN19
Carbon Steel	ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70
Monel	Monel 400, Monel K500, Monel R-405
Nickel Alloy	Nickel 200, Nickel 201
Inconel	Inconel 600, Inconel 601, Inconel 625, Inconel 718
Incoloy	Incoloy 800, Inconel 800H, 800HT
Hastalloy	Hastalloy B2, Hastalloy B3, Hastalloy C22, Hastalloy C276, Hastalloy X
Titanium	Gr1, Gr2, Gr3, Gr5, Gr7, Gr11
Duplex Steel	ASTM / ASME A/SA 182 UNS F44, F45, F51, F53, F55, F60, F61
