3 Valve Manifold
3 Valve Manifold Pipe to Pipe Straight Type, Pipe to Flange Tee Type, Flange to Flange Type, 3 Valve Manifold Coplanar Manufacturer in Mumbai,India.
Nickel Super Alloys is one of leading Supplier & Exporter of 3 Valve Manifold in India, Mumbai. 3 Valve manifolds are designed for remote or separate mounting. Connecting from process side 1/2" npt(f) and instrument side 1/2" npt(f) connecting system impulse lines and transmitters, having simple three valves configuration which allows for easy two block or isolate, one equaliser valve callbration of a static pressure transmitter or gauge.
A three-way manifold valve is a device that is used to ensure that the capsule will not be over-ranged. It also allows isolation of the transmitter from the process loop. It consists of Three block valves – high pressure and low pressure block valve – and an equalizing valve.
3 Valve Manifold Pipe to Pipe Straight Type Supplier, 3 Valve Manifold Pipe to Flange Tee Type Manufacturer, 3 Valve Manifold Flange to Flange Type Exporter, 3 Valve Manifold Coplanar Supplier in India
Key Features:
- 3 valve manifolds are designed for remote or separate mounting.
- Connecting from process side 1/2" npt(f) and instrument side 1/2" npt(f) connecting system impulse lines and transmitters, having simple two valves configuration which allows for easy block or isolate, bleed or vent valve callbration of a static pressure transmitter or gauge.
Bonnet Assembly :
- Bonnet : back seated blow out proof.
- Spindle : ground and thread rolled. Packing below thread.
- Spindle Tip : non-rotating tip shut-off type & soft seated.
- Dust cap : dust cap protects stem threads from external contamination heat code traceability.
Types of 3 Manifold Valve

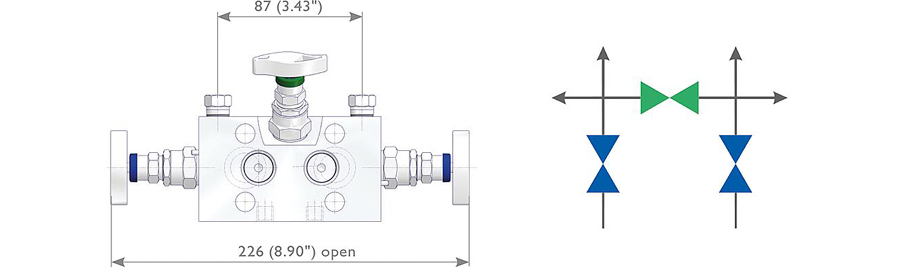

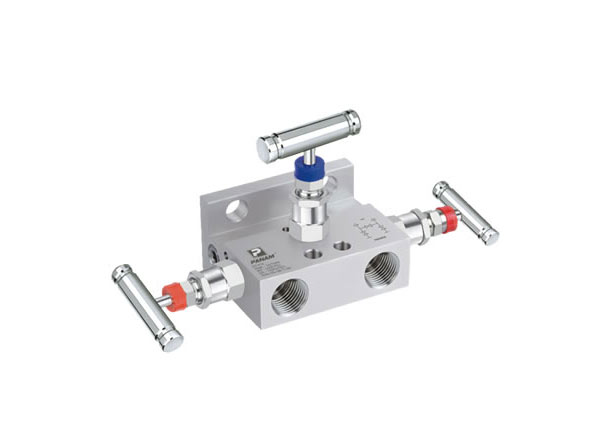

Pipe to Pipe Straight Type
Pipe to Flange H Type

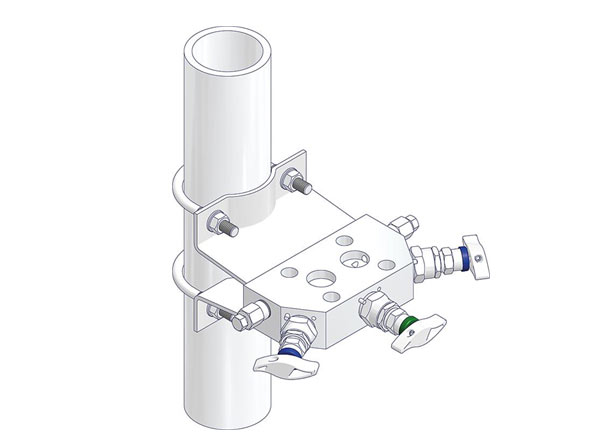

Manifold Coplanar
Technical Specification
| Size | 1/4" & 1/2" & 3/4" Custom size available as per requirement |
| End Connection | NPT, BSPT, BSP & Socket Weld. |
| Working Pressure | 6000 psi (413 bar) |
| Temperature Rating | PTFE 450° f(232°c) Grafoil 700° f (371°c") |
| Stem Packing | PTFE, Grafoil. |
| Orifice | ø4.7 |
Material of Construction
| Stainless Steel | ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L, 304H, 316H, 316/316L, 321, 330, 347, 309/S, 310/S, 317/L, 333, 410/S, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404 |
| Alloy Steel | ASTM SA 182 - E25, E26, E27, E28, E29B, E30B, E39B, E40B, E36B, E36C, E41B, AISI4130, AISI4140, AISI4340, 42CRMO4, 16MNCR5, 20MNCR5, 21CrMoV57, EN353, EN354, F11, F22, F91, F9, P11, P22, P91, P9, P5, P92, EN42J, EN8, EN19 |
| Carbon Steel | ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70 |
| Monel | Monel 400, Monel K500, Monel R-405 |
| Nickel Alloy | Nickel 200, Nickel 201 |
| Inconel | Inconel 600, Inconel 601, Inconel 625, Inconel 718 |
| Incoloy | Incoloy 800, Inconel 800H, 800HT |
| Hastalloy | Hastalloy B2, Hastalloy B3, Hastalloy C22, Hastalloy C276, Hastalloy X |
| Titanium | Gr1, Gr2, Gr3, Gr5, Gr7, Gr11 |
| Duplex Steel | ASTM / ASME A/SA 182 UNS F44, F45, F51, F53, F55, F60, F61 |
