5 Valve Manifold
5 Valve Manifold Pipe to Pipe Straight Type, Pipe to Flange Tee Type, Flange to Flange Type, 5 Valve Manifold Coplanar Manufacturer in Mumbai,India.
Nickel Super Alloys is one of leading Supplier & Exporter of 5 Valve Manifold in India, Mumbai. 5 Valve manifolds are designed for remote or separate mounting. Connecting from process side 1/2" npt(f) and instrument side 1/2" npt(f) connecting system impulse lines and transmitters, having simple three valves configuration which allows for easy two block or isolate, one equaliser valve callbration of a static pressure transmitter or gauge.
The Three valve manifold is shown inside the dotted box consisting of an equalizing valve and two block valves. There is an extra bleed valve used to vent trapped fluid pressure to atmosphere. Three-valve manifolds are more commonly manufactured as monolithic devices: the three valves cast together into one block of metal, attaching to the pressure transmitter by way of a flanged face with O-ring seals.
5 Valve Manifold Pipe to Pipe Straight Type Supplier, 5 Valve Manifold Pipe to Flange Tee Type Manufacturer, 5 Valve Manifold Flange to Flange Type Exporter, 5 Valve Manifold Coplanar Supplier in India
Key Features:
- 5 valve manifolds are designed for remote or separate mounting.
- Connecting from process side 1/2" npt(f) and instrument side 1/2" npt(f) connecting system impulse lines and transmitters, having simple two valves configuration which allows for easy block or isolate, bleed or vent valve callbration of a static pressure transmitter or gauge.
Bonnet Assembly :
- Bonnet : back seated blow out proof.
- Spindle : ground and thread rolled. Packing below thread.
- Spindle Tip : non-rotating tip shut-off type & soft seated.
- Dust cap : dust cap protects stem threads from external contamination heat code traceability.
Types of 5 Manifold Valve

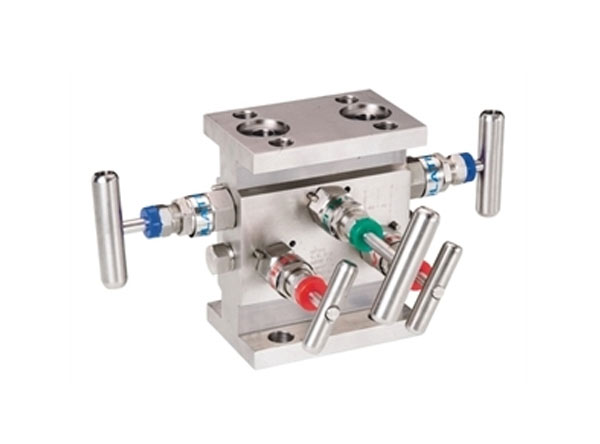

Pipe to Pipe Straight Type
Pipe to Flange H Type

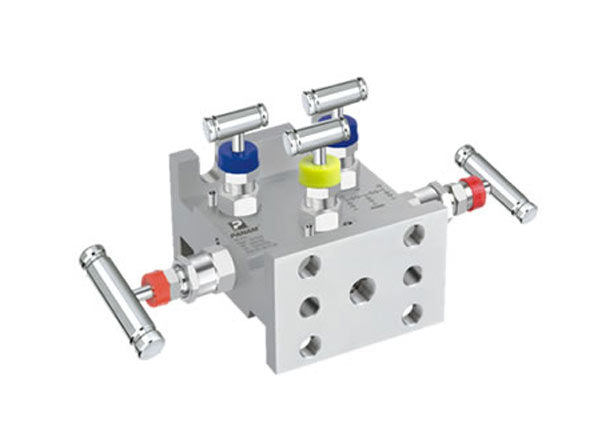

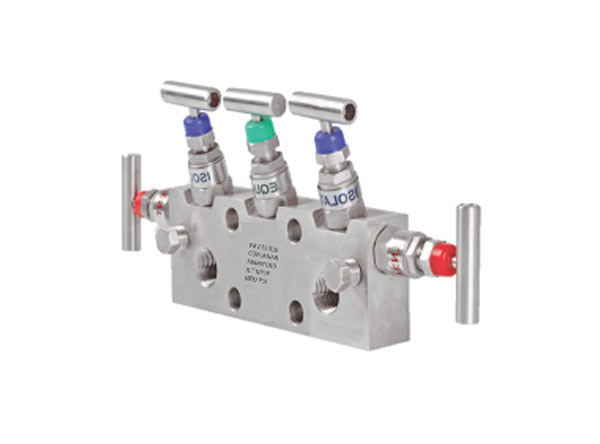

Manifold Coplanar
Technical Specification
| Size | 1/4" & 1/2" & 3/4" Custom size available as per requirement |
| End Connection | NPT, BSPT, BSP & Socket Weld. |
| Working Pressure | 6000 psi (413 bar) |
| Temperature Rating | PTFE 450° f(232°c) Grafoil 700° f (371°c") |
| Stem Packing | PTFE, Grafoil. |
| Orifice | ø4.7 |
Material of Construction
| Stainless Steel | ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L, 304H, 316H, 316/316L, 321, 330, 347, 309/S, 310/S, 317/L, 333, 410/S, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404 |
| Alloy Steel | ASTM SA 182 - E25, E26, E27, E28, E29B, E30B, E39B, E40B, E36B, E36C, E41B, AISI4130, AISI4140, AISI4340, 42CRMO4, 16MNCR5, 20MNCR5, 21CrMoV57, EN353, EN354, F11, F22, F91, F9, P11, P22, P91, P9, P5, P92, EN42J, EN8, EN19 |
| Carbon Steel | ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70 |
| Monel | Monel 400, Monel K500, Monel R-405 |
| Nickel Alloy | Nickel 200, Nickel 201 |
| Inconel | Inconel 600, Inconel 601, Inconel 625, Inconel 718 |
| Incoloy | Incoloy 800, Inconel 800H, 800HT |
| Hastalloy | Hastalloy B2, Hastalloy B3, Hastalloy C22, Hastalloy C276, Hastalloy X |
| Titanium | Gr1, Gr2, Gr3, Gr5, Gr7, Gr11 |
| Duplex Steel | ASTM / ASME A/SA 182 UNS F44, F45, F51, F53, F55, F60, F61 |
