45 Degree Positionable Male Elbow
Stainless Steel 45 Degree Positionable Male Elbow, Alloy Steel 45 Degree Positionable Male Elbow Tube Fittings, Carbon Steel 45 Degree Positionable Male Elbow Compression Tube Fittings, Nickel Alloy 5 Degree Positionable Male Elbow Instrumentation Pipe Fittings Manufacturer in Mumbai,India.
Nickel Super Alloys is one of leading supplier and distributor of 45 Degree Positionable Male Elbow in India. 45 Deg Positionable Male Elbow is specially designed as a leak-free connection for the most demanding process and piping applications. These are corrosion proof having great performance reducing environments. These are completely designed for high pressurize applications. These are wear resistance in terms of impact applications. Our prices for 45 Degree Positionable Male Elbow are very competitive. Please click on the enquiry button or click here to request the updated price list and ready stock information along with your requirement.
Hastelloy 45 Degree Positionable Male Elbow, Monel 45 Degree Positionable Male Elbow Compression Tube Fittings, Aluminum 45 Degree Positionable Male Elbow Instrumentation Pipe Fittings, Inconel 45 Degree Positionable Male Elbow Supplier in India

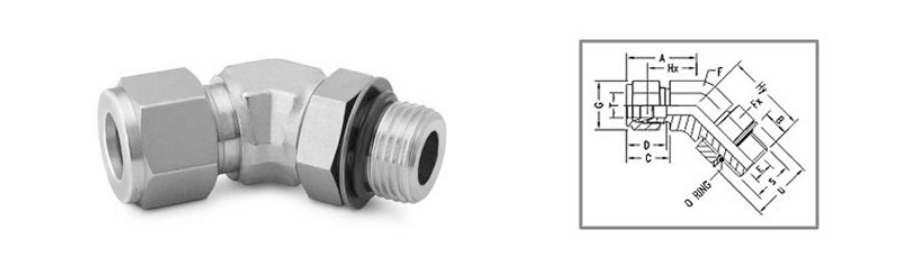

45 Degree Positionable Male Elbow INCH OD TUBE X SAE / MS / Straight Thread
| T Tube OD | P SAE/MS Male | A | B | C | D | E min. | F | Fx A/F | G A/F | Hx A/F | Hy | U |
| 1/4 | 7/16-20 | 25.7 | 9.9 | 17.8 | 15.3 | 4.8 | 14 | 14 | 14 | 18.3 | 25.6 | 16.5 |
| 3/8 | 9/16-18 | 27.9 | 11.2 | 19.3 | 16.8 | 7.1 | 16 | 17 | 17 | 20.6 | 28.2 | 20.0 |
| 1/2 | 3/4-16 | 32.0 | 12.7 | 28.1 | 22.9 | 10.4 | 22 | 22 | 22 | 21.8 | 32.3 | 25.7 |
| 3/4 | 11/16-12 | 39.9 | 16.8 | 21.8 | 24.4 | 15.8 | 27 | 32 | 28.5 | 29.7 | 47.3 | 36.6 |
| 1 | 15/16-12 | 47.5 | 16.8 | 26.4 | 31.2 | 19.8 | 35 | 38 | 38 | 35.3 | 50.6 | 44.0 |
45 Degree Positionable Male Elbow INCH OD TUBE X Male ISO Parallel Thread
| T Tube OD | P ISO Male | A | B | C | D | E min. | F | Fx A/F | G A/F | Hx A/F | Hy | U |
| 1/4 | 1/4 | 25.7 | 9.9 | 17.8 | 15.3 | 4.8 | 14 | 14 | 14 | 18.3 | 25.6 | 16.5 |
| 3/8 |
3/8 |
27.9 | 11.2 | 19.3 | 16.8 | 7.1 | 16 | 17 | 17 | 20.6 | 28.2 | 20.0 |
| 1/2 | 1/2 | 32.0 | 12.7 | 28.1 | 22.9 | 10.4 | 22 | 22 | 22 | 21.8 | 32.3 | 25.7 |
| 3/4 | 3/4 | 39.9 | 16.8 | 21.8 | 24.4 | 15.8 | 27 | 32 | 28.5 | 29.7 | 47.3 | 36.6 |
| 1 | 1 | 47.5 | 16.8 | 26.4 | 31.2 | 19.8 | 35 | 38 | 38 | 35.3 | 50.6 | 44.0 |
Material of Construction
| Stainless Steel | ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L, 304H, 316H, 316/316L, 321, 330, 347, 309/S, 310/S, 317/L, 333, 410/S, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404 |
| Alloy Steel | ASTM SA 182 - E25, E26, E27, E28, E29B, E30B, E39B, E40B, E36B, E36C, E41B, AISI4130, AISI4140, AISI4340, 42CRMO4, 16MNCR5, 20MNCR5, 21CrMoV57, EN353, EN354, F11, F22, F91, F9, P11, P22, P91, P9, P5, P92, EN42J, EN8, EN19 |
| Carbon Steel | ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70 |
| Monel | Monel 400, Monel K500, Monel R-405 |
| Nickel Alloy | Nickel 200, Nickel 201 |
| Inconel | Inconel 600, Inconel 601, Inconel 625, Inconel 718 |
| Incoloy | Incoloy 800, Inconel 800H, 800HT |
| Hastalloy | Hastalloy B2, Hastalloy B3, Hastalloy C22, Hastalloy C276, Hastalloy X |
| Titanium | Gr1, Gr2, Gr3, Gr5, Gr7, Gr11 |
| Duplex Steel | ASTM / ASME A/SA 182 UNS F44, F45, F51, F53, F55, F60, F61 |
