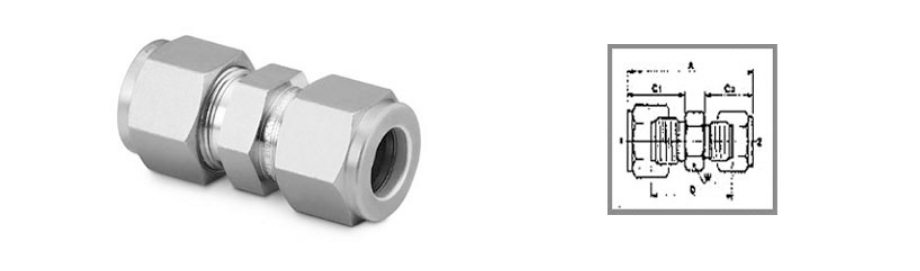

Union Compression Tube Fittings
Stainless Steel Union Compression Tube Fittings, Alloy Steel Tube Union Fittings, Carbon Steel Union Double Ferrule Fittings, Nickel Alloy Tube Union Fittings Manufacturer in Mumbai,India.
Nickel Super Alloys is one of leading supplier and distributor of Pipe Union in India. Pipe Union is basically a sort of fitting component that is designed in such a manner that it can effectively unite two separated pipes. The corresponding pipes can be easily detached with no formation of deformation to respective pipes. Similar small diameter pipes require a positive seal and it can assemble easily with the assistance of Union Compression Tube Fittings. There are many brands available in markets like Swagelok, KSLOK, BILOK, TYLOK and Parker ALOK, among them, Shikhar Steel is known as one of the best traders and manufacturers of Union Compression Tube Fittings that are made available in a variety of popular stainless steel grades include SS 304 & SS 316.
Hastelloy Tube Union Fittings, Monel Union Compression Tube Fittings, Aluminum Union Double Ferrule Fittings, Inconel Tube Union Fittings Supplier in India
Imperial Tubing
| Tube O.D inch |
A | C | D | Min bore | |||||
| inch | mm | inch | mm | inch | mm | inch | mm | ||
| 1/16 | 0.97 | 24.6 | 0.43 | 10.9 | 0.69 | 17.5 | 5/16 | 1.3 | |
| 1/8 | 1.38 | 35.1 | 0.60 | 15.2 | 0.88 | 22.4 | 7/16 | 2.3 | |
| 3/16 | 1.45 | 36.8 | 0.63 | 16.0 | 0.95 | 24.1 | 7/16 | 3.3 | |
| 1/4 | 1.62 | 41.1 | 0.70 | 17.8 | 1.03 | 26.2 | 1/2 | 4.8 | |
| 5/16 | 1.70 | 43.2 | 0.73 | 18.6 | 1.11 | 28.2 | 9/16 | 6.4 | |
| 3/8 | 1.78 | 45.2 | 0.76 | 19.3 | 1.19 | 30.2 | 5/8 | 7.1 | |
| 1/2 | 2.00 | 50.8 | 0.96 | 21.8 | 1.22 | 31.0 | 13/16 | 10.4 | |
| 5/8 | 2.02 | 51.3 | 0.86 | 21.8 | 1.25 | 31.8 | 15/16 | 12.7 | |
| 3/4 | 2.08 | 52.8 | 0.86 | 21.8 | 1.31 | 33.3 | 1.1/16 | 16.0 | |
| 7/8 | 2.15 | 54.6 | 0.86 | 21.8 | 1.38 | 35.1 | 1.3/16 | 19.1 | |
| 1 | 2.53 | 64.3 | 1.04 | 26.4 | 1.59 | 40.4 | 1.3/8 | 22.4 | |
Metric Tubing
| Tube O.D mm |
A mm |
C mm |
D mm |
W inch |
Min bore mm |
||||
| 3 | 35.3 | 15.3 | 22.1 | 7/16 | 2.4 | ||||
| 4 | 37.4 | 16.1 | 24.2 | 7/16 | 3.0 | ||||
| 6 | 41.2 | 17.7 | 26.2 | 1/2 | 4.8 | ||||
| 8 | 43.2 | 18.6 | 28.2 | 9/16 | 6.4 | ||||
| 10 | 46.2 | 19.5 | 31.0 | 11/16 | 7.9 | ||||
| 12 | 51.2 | 22.0 | 31.0 | 13/16 | 9.5 | ||||
| 16 | 52.0 | 22.0 | 31.8 | 15/16 | 12.7 | ||||
| 18 | 53.5 | 22.0 | 33.3 | 1.1/16 | 15.1 | ||||
| 20 | 55.0 | 22.0 | 34.8 | 1.3/16 | 15.9 | ||||
| 25 | 65.1 | 26.5 | 40.5 | 1.3/8 | 22.2 | ||||
Material of Construction
| Stainless Steel | ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L, 304H, 316H, 316/316L, 321, 330, 347, 309/S, 310/S, 317/L, 333, 410/S, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404 |
| Alloy Steel | ASTM SA 182 - E25, E26, E27, E28, E29B, E30B, E39B, E40B, E36B, E36C, E41B, AISI4130, AISI4140, AISI4340, 42CRMO4, 16MNCR5, 20MNCR5, 21CrMoV57, EN353, EN354, F11, F22, F91, F9, P11, P22, P91, P9, P5, P92, EN42J, EN8, EN19 |
| Carbon Steel | ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70 |
| Monel | Monel 400, Monel K500, Monel R-405 |
| Nickel Alloy | Nickel 200, Nickel 201 |
| Inconel | Inconel 600, Inconel 601, Inconel 625, Inconel 718 |
| Incoloy | Incoloy 800, Inconel 800H, 800HT |
| Hastalloy | Hastalloy B2, Hastalloy B3, Hastalloy C22, Hastalloy C276, Hastalloy X |
| Titanium | Gr1, Gr2, Gr3, Gr5, Gr7, Gr11 |
| Duplex Steel | ASTM / ASME A/SA 182 UNS F44, F45, F51, F53, F55, F60, F61 |
