Bulkhead Male Connector
Stainless Steel Bulkhead Male Connector Tube Fittings, Alloy Steel Bulkhead Male Connector Compression Tube Fittings, Carbon Steel Bulkhead Male Connector Instrumentation Pipe Fittings, Nickel Alloy Bulkhead Male Connector Manufacturer in Mumbai,India.
Nickel Super Alloys is one of leading supplier and distributor of Bulkhead Male Connector in India. Bulkhead Male Connector fittings, definite by the SAE J514 and MIL-DTL-18866 standard, are a type of appropriate machined with a 37-degree flame seating surface. Fittings are extensively used in fuel delivery and fluid power applications, especially where high pressure (up to 10,000 psi) is involved. The SAE J514 normal replaces the MS16142 military specification, though some tooling is still listed under MS16142. We carries high-performance Bulkhead Male Connector ferrule fittings that made available in a wide variety of popular Stainless Steel grades include SS 304 & SS 316, Alloy Steel, Carbon Steel, Nickel Alloy. Monel, Inconel, Hastelloy, Duplex Steel, Aluminum, 254 SMO etc.
Hastelloy Bulkhead Male Connector, Monel Bulkhead Male Connector Tube Fittings, Aluminum Bulkhead Male Connector Compression Tube Fittings, Inconel Bulkhead Male Connector Instrumentation Pipe Fittings Supplier in India
Imperial Tubing

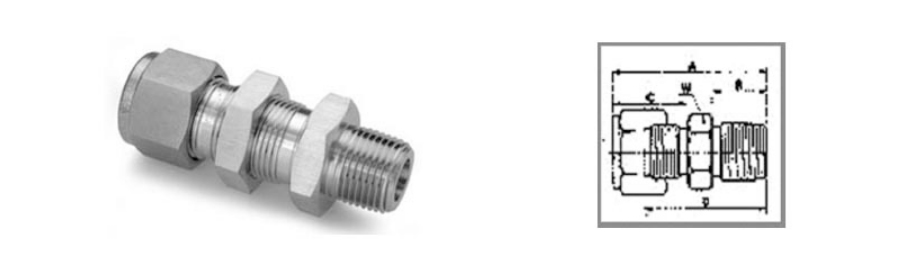

| Tube O.D | NPT thread | A | C | D | L | R | W | B’head hole drill size | Max b’head thichness | Min bore | |||||||||
| inch | inch | mm | inch | mm | inch | mm | inch | mm | inch | mm | inch | inch | inch | inch | mm | mm | |||
| /16 | 1/16 | 1.55 | 39.4 | 0.67 | 17.0 | 1.41 | 35.8 | 0.53 | 13.5 | 0.38 | 9.7 | 5/16 | 13/64 | 0.12 | 0.05 | 1.3 | 1.3 | ||
| 1/16 | 1/8 | 1.55 | 39.4 | 0.67 | 17.0 | 1.41 | 35.8 | 0.53 | 13.5 | 0.38 | 9.7 | 7/16 | 13/64 | 0.12 | 0.05 | 1.3 | 1.3 | ||
| 1/8 | 1/8 | 1.81 | 46.0 | 1.22 | 31.0 | 1.56 | 39.6 | 0.97 | 24.6 | 0.38 | 9.7 | 1/2 | 21/64 | 0.50 | 0.09 | 2.3 | 2.3 | ||
| 3/16 | 1/8 | 1.84 | 46.7 | 1.25 | 31.8 | 1.59 | 40.4 | 1.00 | 25.4 | 0.38 | 9.7 | 9/16 | 25/64 | 0.50 | 0.13 | 3.3 | 3.3 | ||
| 1/4 | 1/8 | 1.96 | 50.0 | 1.33 | 33.8 | 1.66 | 42.2 | 1.03 | 26.2 | 0.38 | 9.7 | 5/8 | 29/64 | 0.40 | 0.19 | 4.8 | 4.8 | ||
| 1/4 | 1/4 | 2.11 | 53.6 | 1.33 | 33.8 | 1.81 | 46.0 | 1.03 | 26.2 | 0.56 | 14.2 | 5/8 | |||||||
Material of Construction
| Stainless Steel | ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L, 304H, 316H, 316/316L, 321, 330, 347, 309/S, 310/S, 317/L, 333, 410/S, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404 |
| Alloy Steel | ASTM SA 182 - E25, E26, E27, E28, E29B, E30B, E39B, E40B, E36B, E36C, E41B, AISI4130, AISI4140, AISI4340, 42CRMO4, 16MNCR5, 20MNCR5, 21CrMoV57, EN353, EN354, F11, F22, F91, F9, P11, P22, P91, P9, P5, P92, EN42J, EN8, EN19 |
| Carbon Steel | ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70 |
| Monel | Monel 400, Monel K500, Monel R-405 |
| Nickel Alloy | Nickel 200, Nickel 201 |
| Inconel | Inconel 600, Inconel 601, Inconel 625, Inconel 718 |
| Incoloy | Incoloy 800, Inconel 800H, 800HT |
| Hastalloy | Hastalloy B2, Hastalloy B3, Hastalloy C22, Hastalloy C276, Hastalloy X |
| Titanium | Gr1, Gr2, Gr3, Gr5, Gr7, Gr11 |
| Duplex Steel | ASTM / ASME A/SA 182 UNS F44, F45, F51, F53, F55, F60, F61 |
