Bulkhead Elbow Tube Fittings
Stainless Steel Bulkhead Elbow Tube Fittings, Alloy Steel Bulkhead Elbow Compression Tube Fittings, Carbon Steel Bulkhead Elbow Instrumentation Pipe Fittings, Nickel Alloy Bulkhead Elbow Manufacturer in Mumbai,India.
Nickel Super Alloys is one of leading supplier and distributor of Bulkhead Elbow Tube Fittings in India. Bulkhead Elbow is designed in all standards that help installers make more consistency and leakage tight tube connections. These have excellent gas-tight sealing and tube gripping action and easily achieved proper installation. It has excellent vibration fatigue resistance and tube support. During the installation of this elbow, no torque is transmitted on fittings. Our offered range of Bulkhead Elbow Tube Fittings is available in Brass, Stainless Steel, Alloy Steel, Carbon Steel, Nickel Alloy, Monel, Hastelloy, Inconel, Alloy 20, and many other materials. If you looking for a right supplier, then you come to the right place.
Hastelloy Bulkhead Elbow Tube Fittings, Monel Bulkhead Elbow Compression Tube Fittings, Aluminum Bulkhead Elbow Instrumentation Pipe Fittings, Inconel Bulkhead Elbow Supplier in India

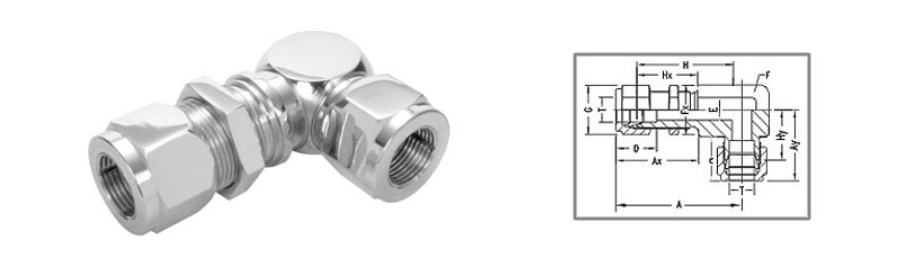

Bulkhead Elbow INCH OD Tubes
| T Tube OD | A | Ax | Ay | C | D | E min. | F A/F | G A/F | H | Hx | Hy | Panel Hole Drill Size | Max Panel Thickness |
| 1/8 | 43.1 | 31.2 | 22.4 | 15.3 | 12.7 | 2.4 | 11 | 11 | 36.5 | 24.6 | 15.8 | 8.3 | 12.7 |
| 1/4 | 48.9 | 33.6 | 26.9 | 17.8 | 15.3 | 4.8 | 16 | 14 | 41.5 | 26.2 | 19.6 | 11.5 | 10.1 |
| 3/8 | 54.1 | 36.8 | 30.5 | 19.3 | 16.8 | 7.1 | 22 | 17 | 46.8 | 29.5 | 23.2 | 14.6 | 11.1 |
| 1/2 | 63.5 | 41.9 | 36.0 | 21.8 | 22.9 | 10.4 | 24 | 22 | 53.4 | 31.8 | 25.9 | 19.5 | 12.7 |
| 3/4 | 75.3 | 47.5 | 39.9 | 21.8 | 24.4 | 16.0 | 30 | 29 | 65.2 | 37.4 | 29.7 | 25.8 | 16.8 |
| 1 | 91.8 | 57.4 | 49.0 | 26.4 | 31.2 | 22.3 | 35 | 38 | 79.6 | 45.2 | 36.8 | 33.7 | 19.0 |
Bulkhead Elbow METRIC OD Tubes
| T Tube OD | A | Ax | Ay | C | D | E min. | F A/F | G A/F | H | Hx | Hy | Panel Hole Drill Size | Max Panel Thickness |
| 3 | 43.0 | 31.2 | 22.3 | 15.3 | 12.9 | 2.4 | 14 | 11 | 36.4 | 24.6 | 15.7 | 8.3 | 12.7 |
| 6 | 49.3 | 33.6 | 27.0 | 17.7 | 15.3 | 4.8 | 16 | 14 | 41.9 | 26.2 | 19.6 | 11.5 | 10.2 |
| 8 | 52.6 | 36.1 | 28.8 | 18.6 | 16.2 | 6.3 | 17 | 16 | 45.1 | 28.6 | 21.3 | 13.1 | 11.2 |
| 10 | 56.2 | 37.0 | 31.5 | 19.5 | 17.2 | 7.9 | 22 | 19 | 48.6 | 29.4 | 23.9 | 16.3 | 11.2 |
| 12 | 63.0 | 41.9 | 36.0 | 22.0 | 22.8 | 9.5 | 24 | 22 | 52.9 | 31.8 | 25.9 | 19.5 | 12.7 |
| 16 | 66.5 | 42.6 | 38.0 | 22.0 | 24.4 | 12.7 | 27 | 25 | 56.4 | 32.5 | 27.9 | 22.8 | 12.7 |
| 22 | 85.1 | 53.0 | 41.9 | 22.0 | 26.0 | 18.3 | 35 | 32 | 75.0 | 42.9 | 34.5 | 29.0 | 19.0 |
| 25 | 91.8 | 57.4 | 49.1 | 26.4 | 31.2 | 22.3 | 35 | 38 | 79.6 | 45.2 | 36.8 | 33.7 | 19.0 |
Material of Construction
| Stainless Steel | ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L, 304H, 316H, 316/316L, 321, 330, 347, 309/S, 310/S, 317/L, 333, 410/S, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404 |
| Alloy Steel | ASTM SA 182 - E25, E26, E27, E28, E29B, E30B, E39B, E40B, E36B, E36C, E41B, AISI4130, AISI4140, AISI4340, 42CRMO4, 16MNCR5, 20MNCR5, 21CrMoV57, EN353, EN354, F11, F22, F91, F9, P11, P22, P91, P9, P5, P92, EN42J, EN8, EN19 |
| Carbon Steel | ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70 |
| Monel | Monel 400, Monel K500, Monel R-405 |
| Nickel Alloy | Nickel 200, Nickel 201 |
| Inconel | Inconel 600, Inconel 601, Inconel 625, Inconel 718 |
| Incoloy | Incoloy 800, Inconel 800H, 800HT |
| Hastalloy | Hastalloy B2, Hastalloy B3, Hastalloy C22, Hastalloy C276, Hastalloy X |
| Titanium | Gr1, Gr2, Gr3, Gr5, Gr7, Gr11 |
| Duplex Steel | ASTM / ASME A/SA 182 UNS F44, F45, F51, F53, F55, F60, F61 |
