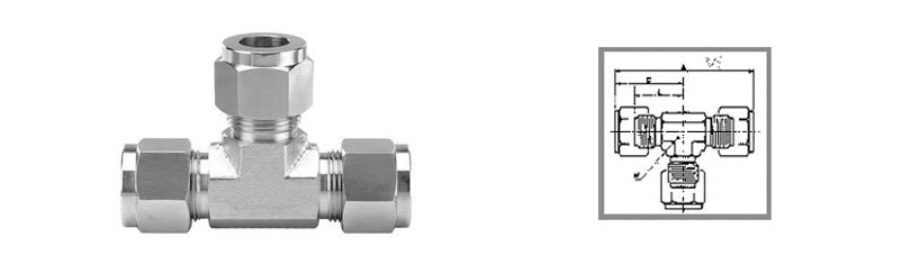

Union Tee
Stainless Steel Union Tee Tube Fittings, Alloy Steel Union Tee Compression Tube Fittings, Carbon Steel Union Tee Instrumentation Pipe Fittings, Nickel Alloy Union Tee Manufacturer in Mumbai,India.
Nickel Super Alloys is one of leading supplier and distributor of Union Tee in India. Union Tee is the type of fittings that joins three tubes of the same diameter for air supply with two other tubes inline and one at 90-degree angle. These tees are generally used for pipe fittings. These tees are manufactured from various materials such as nickel, iron, and carbon and from other contents. We supply union tee ferrule fittings in a wide variety of major Stainless Steel includes SS 304 & SS 316 etc., Alloy Steel, Carbon Steel, as well as Nickel Alloy grades including Monel, Inconel, Hastelloy, Duplex Steel, Aluminum, 254 SMO etc. Union Tee Tube Fittings are most popular for its diverse industrial needs.
Hastelloy Union Tee Tube Fittings, Monel Union Tee Compression Tube Fittings, Aluminum Union Tee Instrumentation Pipe Fittings, Inconel Union Tee Supplier in India
Imperial Tubing
| Tube O.D (inch) |
A | C | L | W (inch) |
Min. bore | ||||
| inch | mm | inch | mm | inch | mm | inch | mm | ||
| 1/16 | 1.40 | 35.6 | 0.70 | 17.8 | 0.56 | 14.2 | 5/16 | 0.05 | 1.3 |
| 1/8 | 1.82 | 46.2 | 0.91 | 23.1 | 0.66 | 16.8 | 5/16 | 0.09 | 2.3 |
| 3/16 | 1.88 | 47.8 | 0.94 | 24.9 | 0.69 | 17.5 | 7/16 | 0.13 | 3.3 |
| 1/4 | 2.03 | 51.6 | 1.02 | 25.9 | 0.72 | 18.3 | 7/16 | 0.19 | 4.8 |
| 5/16 | 2.21 | 56.1 | 1.10 | 27.9 | 0.81 | 20.6 | 9/16 | 0.25 | 6.4 |
| 3/8 | 2.27 | 57.7 | 1.13 | 28.7 | 0.84 | 21.3 | 9/16 | 0.28 | 7.1 |
| 1/2 | 2.71 | 68.8 | 1.35 | 34.3 | 0.97 | 24.6 | 3/4 | 0.41 | 10.4 |
| 5/8 | 2.89 | 73.4 | 1.44 | 36.6 | 1.06 | 26.9 | 7/8 | 0.50 | 12.7 |
| 3/4 | 3.09 | 78.5 | 1.54 | 39.1 | 1.16 | 29.5 | 1.1/16 | 0.63 | 16.0 |
| 7/8 | 3.33 | 84.6 | 1.66 | 42.2 | 1.28 | 32.5 | 1.5/16 | 0.75 | 19.1 |
| 1 | 3.56 | 90.4 | 1.78 | 45.2 | 1.31 | 33.3 | 1.5/16 | 0.88 | 22.4 |
Metric Tubing
| Tube O.D (mm) |
A | C | L | W | Min. bore (mm) |
||||
| mm | mm | mm | inch | ||||||
| 3 | 46.6 | 23.3 | 16.7 | 5/16 | 2.4 | ||||
| 4 | 48.2 | 24.1 | 17.5 | 5/16 | 3.0 | ||||
| 6 | 51.6 | 25.8 | 18.3 | 7/16 | 4.8 | ||||
| 8 | 56.2 | 28.1 | 20.6 | 9/16 | 6.4 | ||||
| 10 | 66.0 | 33.0 | 25.4 | 3/4 | 7.9 | ||||
| 12 | 69.4 | 34.7 | 24.6 | 3/4 | 9.5 | ||||
| 16 | 74.2 | 37.1 | 27.0 | 7/8 | 12.7 | ||||
| 18 | 79.0 | 39.5 | 29.4 | 1.1/16 | 15.1 | ||||
| 20 | 85.2 | 42.6 | 32.5 | 1.5/16 | 15.9 | ||||
| 25 | 91.2 | 45.6 | 33.3 | 1.3/8 | 22.2 | ||||
Material of Construction
| Stainless Steel | ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L, 304H, 316H, 316/316L, 321, 330, 347, 309/S, 310/S, 317/L, 333, 410/S, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404 |
| Alloy Steel | ASTM SA 182 - E25, E26, E27, E28, E29B, E30B, E39B, E40B, E36B, E36C, E41B, AISI4130, AISI4140, AISI4340, 42CRMO4, 16MNCR5, 20MNCR5, 21CrMoV57, EN353, EN354, F11, F22, F91, F9, P11, P22, P91, P9, P5, P92, EN42J, EN8, EN19 |
| Carbon Steel | ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70 |
| Monel | Monel 400, Monel K500, Monel R-405 |
| Nickel Alloy | Nickel 200, Nickel 201 |
| Inconel | Inconel 600, Inconel 601, Inconel 625, Inconel 718 |
| Incoloy | Incoloy 800, Inconel 800H, 800HT |
| Hastalloy | Hastalloy B2, Hastalloy B3, Hastalloy C22, Hastalloy C276, Hastalloy X |
| Titanium | Gr1, Gr2, Gr3, Gr5, Gr7, Gr11 |
| Duplex Steel | ASTM / ASME A/SA 182 UNS F44, F45, F51, F53, F55, F60, F61 |
