Bulkhead Reducing Union
Stainless Steel Bulkhead Reducing Union Tube Fittings, Alloy Steel Bulkhead Reducing Union Compression Tube Fittings, Carbon Steel Bulkhead Reducing Union Instrumentation Pipe Fittings, Nickel Alloy Bulkhead Reducing Union Tube Fittings Manufacturer in Mumbai,India.
Nickel Super Alloys is one of leading supplier and distributor of Bulkhead Reducing Union in India. Bulkhead Reducing Union to our respected customers. Manufactured in observance with the industry set standards, these bulkhead reducing unions obtainable by us are widely used for various union two pipes. These unions are able to be custom complete as per the specifications provided by the customers. We are offer a wide range of Bulkhead Reducing Union for any application requiring reliable tube connections with pressure-tight sealing. The offered and supplied bulkhead reducing union from Shikhar Steel are available in Brass, Stainless Steel, Alloy Steel, Carbon Steel, Nickel Alloy, Monel, Hastelloy, Inconel, Alloy 20, and many other materials.
Hastelloy Bulkhead Reducing Union Tube Fittings, Monel Bulkhead Reducing Union Compression Tube Fittings, Aluminum Bulkhead Reducing Union Instrumentation Pipe Fittings, Inconel Bulkhead Reducing Union Tube Fittings Supplier in India

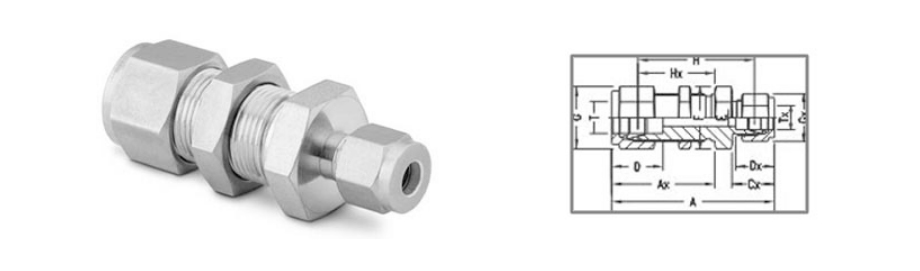

Bulkhead Reducing Union INCH OD Tubes
| T Tube OD | T Tube OD | A | Ax | Cx | D | Dx | E min. | F A/F | G A/F | Gx A/F | H | Hx | Panel Hole Drill Size | Max Panel Thickness |
| 1/4 | 1/8 | 55.2 | 33.5 | 15.3 | 15.3 | 12.7 | 2.4 | 16 | 14 | 11 | 41.2 | 26.2 | 11.5 | 10.2 |
| 3/8 | 1/4 | 60.7 | 36.6 | 17.8 | 16.8 | 15.3 | 4.8 | 22 | 17 | 14 | 46.0 | 29.5 | 14.6 | 11.2 |
| 1/2 | 1/4 | 66.8 | 41.9 | 17.8 | 22.4 | 15.3 | 4.8 | 24 | 22 | 14 | 49.2 | 31.8 | 19.5 | 12.7 |
| 1/2 | 3/8 | 66.8 | 41.9 | 17.8 | 22.4 | 16.8 | 7.1 | 24 | 22 | 17 | 49.2 | 31.8 | 19.5 | 12.7 |
Bulkhead Reducing Union METRIC OD Tubes
| T Tube OD | T Tube OD | A | Ax | Cx | D | Dx | E min. | F A/F | G A/F | Gx A/F | H | Hx | Panel Hole Drill Size | Max Panel Thickness |
| 6 | 3 | 56.0 | 33.6 | 17.7 | 15.3 | 12.9 | 2.4 | 16 | 14 | 11 | 41.2 | 26.2 | 11.5 | 10.2 |
| 8 | 6 | 61.0 | 36.1 | 18.6 | 16.2 | 15.3 | 4.8 | 17 | 16 | 14 | 48.0 | 28.6 | 13.1 | 11.2 |
| 10 | 6 | 63.7 | 37.0 | 19.5 | 17.2 | 15.3 | 4.8 | 22 | 19 | 14 | 48.5 | 29.4 | 16.3 | 11.2 |
| 12 | 6 | 71.0 | 41.9 | 22.0 | 22.8 | 15.3 | 4.8 | 24 | 22 | 14 | 50.8 | 31.8 | 19.5 | 12.7 |
| 12 | 10 | 71.0 | 41.9 | 22.0 | 22.8 | 17.2 | 7.9 | 24 | 22 | 17 | 50.8 | 31.8 | 19.5 | 12.7 |
Material of Construction
| Stainless Steel | ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L, 304H, 316H, 316/316L, 321, 330, 347, 309/S, 310/S, 317/L, 333, 410/S, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404 |
| Alloy Steel | ASTM SA 182 - E25, E26, E27, E28, E29B, E30B, E39B, E40B, E36B, E36C, E41B, AISI4130, AISI4140, AISI4340, 42CRMO4, 16MNCR5, 20MNCR5, 21CrMoV57, EN353, EN354, F11, F22, F91, F9, P11, P22, P91, P9, P5, P92, EN42J, EN8, EN19 |
| Carbon Steel | ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70 |
| Monel | Monel 400, Monel K500, Monel R-405 |
| Nickel Alloy | Nickel 200, Nickel 201 |
| Inconel | Inconel 600, Inconel 601, Inconel 625, Inconel 718 |
| Incoloy | Incoloy 800, Inconel 800H, 800HT |
| Hastalloy | Hastalloy B2, Hastalloy B3, Hastalloy C22, Hastalloy C276, Hastalloy X |
| Titanium | Gr1, Gr2, Gr3, Gr5, Gr7, Gr11 |
| Duplex Steel | ASTM / ASME A/SA 182 UNS F44, F45, F51, F53, F55, F60, F61 |
