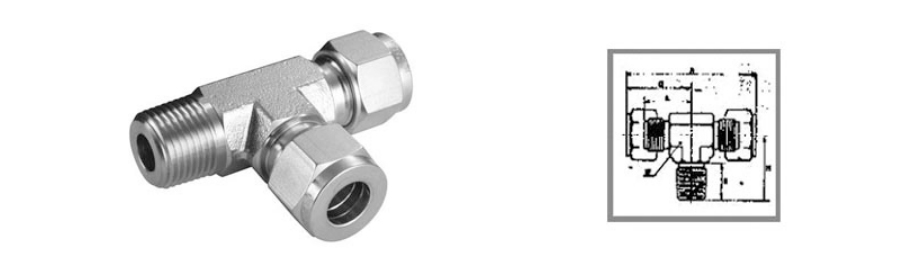

Male Run Tee Tube Fittings
Stainless Steel Male Run Tee Tube Fittings, Alloy Steel Male Run Tee Compression Tube Fittings, Carbon Steel Male Run Tee Instrumentation Pipe Fittings, Nickel Alloy Male Run Tee Tube Fittings Manufacturer in Mumbai,India.
Nickel Super Alloys is one of leading supplier and distributor of Male Run Tee Tube Fittings in India. Male Run Tee is a fitting that joins a female connection on its one straight end whereas a male connection to the other straight end. These run tees traits a push to connect port opposing to a male thread whereas other connects port is arranged apart 90 degrees. These fittings are a simple and quick method of joining mechanism in a pneumatic system. Our state of the art facility comprises with Male Run Tee Tube Fittings which are made available with excellent quality of raw materials to suit the fixing work mainly in electrical industries, air conditioning industries. The material includes Stainless Steels, Alloy Steel, Carbon Steel, Nickel Alloy, Monel, Hastelloy, Inconel, Alloy 20, and many more.
Hastelloy Male Run Tee Tube Fittings, Monel Male Run Tee Compression Tube Fittings, Aluminum Male Run Tee Instrumentation Pipe Fittings, Inconel Male Run Tee Tube Fittings Supplier in India
Imperial Tubing
| Tube O.D inch | NPT thread | C | L | P | R | W inch | Min bore | |||||||||
| inch | mm | inch | mm | inch | mm | inch | mm | mm | inch | mm | ||||||
| 1/16 | 1/16 | 0.58 | 14.7 | 0.44 | 11.2 | 0.56 | 14.2 | 0.38 | 9.7 | 9.7 | 3/8 | 0.05 | 1.3 | |||
| 1/8 | 1/8 | 0.78 | 19.8 | 0.53 | 13.5 | 0.52 | 13.2 | 0.38 | 9.7 | 9.7 | 7/16 | 0.09 | 2.3 | |||
| 3/16 | 1/8 | 0.81 | 20.6 | 0.56 | 14.2 | 0.58 | 14.7 | 0.38 | 9.7 | 9.7 | 7/16 | 0.13 | 3.3 | |||
| 1/4 | 1/8 | 0.93 | 23.6 | 0.63 | 16.0 | 0.66 | 16.8 | 0.38 | 9.7 | 9.7 | 9/16 | 0.19 | 4.8 | |||
| 1/4 | 1/4 | 0.96 | 24.4 | 0.66 | 16.8 | 0.86 | 21.8 | 0.56 | 14.2 | 14.2 | 9/16 | 0.19 | 4.8 | |||
| 5/16 | 1/8 | 0.95 | 24.1 | 0.66 | 16.8 | 0.66 | 16.8 | 0.38 | 9.7 | 9.7 | 9/16 | 0.19 | 4.8 | |||
| 3/8 | 1/4 | 1.01 | 25.7 | 0.72 | 18.3 | 0.86 | 21.8 | 0.56 | 14.2 | 14.2 | 9/16 | 0.28 | 7.1 | |||
| 1/2 | 3/8 | 1.13 | 28.7 | 0.75 | 19.1 | 0.95 | 24.1 | 0.56 | 14.2 | 14.2 | 3/4 | 0.41 | 10 | |||
| 5/8 | 1/2 | 1.19 | 30.2 | 0.81 | 20.6 | 1.17 | 29.7 | 0.75 | 19.1 | 19.1 | 7/8 | 0.50 | 13 | |||
| 3/4 | 3/4 | 1.22 | 31.0 | 0.84 | 21.3 | 1.20 | 30.5 | 0.75 | 19.1 | 19.1 | 1.1/16 | 0.63 | 16 | |||
| 7/8 | 3/4 | 1.32 | 33.5 | 0.94 | 23.9 | 1.27 | 32.3 | 0.75 | 19.1 | 19.1 | 1.5/16 | 0.72 | 18 | |||
| 1 | 1 | 1.66 | 42.2 | 1.19 | 30.2 | 1.48 | 37.6 | 0.94 | 23.9 | 23.9 | 1.5/16 | 0.88 | 22 | |||
Metric Tubing
| Tube O.D mm | NPT thread | C | L | P | R | W inch | Min bore mm |
|||||||||
| mm | mm | mm | mm | |||||||||||||
| 6 | 1/8 | 17.7 | 16.0 | 16.8 | 9.5 | 9/16 | 4.8 | |||||||||
| 6 | 1/4 | 17.7 | 16.0 | 21.8 | 14.3 | 9/16 | 4.8 | |||||||||
| 8 | 1/8 | 18.6 | 16.8 | 16.8 | 9.5 | 9/16 | 4.8 | |||||||||
| 10 | 1/4 | 19.5 | 19.0 | 24.1 | 14.3 | 3/4 | 7.1 | |||||||||
| 12 | 3/8 | 22.0 | 19.0 | 24.1 | 14.3 | 3/4 | 9.5 | |||||||||
| 12 | 1/2 | 22.0 | 20.6 | 29.7 | 19.0 | 7/8 | 9.5 | |||||||||
| 16 | 1/2 | 22.0 | 20.6 | 29.7 | 19.0 | 7/8 | 12.7 | |||||||||
Material of Construction
| Stainless Steel | ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L, 304H, 316H, 316/316L, 321, 330, 347, 309/S, 310/S, 317/L, 333, 410/S, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404 |
| Alloy Steel | ASTM SA 182 - E25, E26, E27, E28, E29B, E30B, E39B, E40B, E36B, E36C, E41B, AISI4130, AISI4140, AISI4340, 42CRMO4, 16MNCR5, 20MNCR5, 21CrMoV57, EN353, EN354, F11, F22, F91, F9, P11, P22, P91, P9, P5, P92, EN42J, EN8, EN19 |
| Carbon Steel | ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70 |
| Monel | Monel 400, Monel K500, Monel R-405 |
| Nickel Alloy | Nickel 200, Nickel 201 |
| Inconel | Inconel 600, Inconel 601, Inconel 625, Inconel 718 |
| Incoloy | Incoloy 800, Inconel 800H, 800HT |
| Hastalloy | Hastalloy B2, Hastalloy B3, Hastalloy C22, Hastalloy C276, Hastalloy X |
| Titanium | Gr1, Gr2, Gr3, Gr5, Gr7, Gr11 |
| Duplex Steel | ASTM / ASME A/SA 182 UNS F44, F45, F51, F53, F55, F60, F61 |
